Basic Info.
Model NO.
VL-HS1KW
Phase
Single and Split
Output Power
>1000W
Certification
CE
Brand
V-Land
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Output Voltage Waveform
Pure Sine Wave/Same as Input(Bypass Mode)
Nominal Efficiency
>88%(Peak)
Line Mode Efficiency
>95%
Power Factor
0.9-1.0
Nominal Output Voltage RMS
100-110-120VAC / 220-230-240VAC
Output Voltage Regulation
±10% RMS
Output Frequency
50Hz ± 0.3Hz/60Hz ± 0.3Hz
Short Circuit Protection
Yes( 1sec After Fault )
Typical Transfer Time
10ms(Max)
Thd
< 10%
Output Short Circuit Protection
Circuit Breaker
Overload Protection (SMPS Load)
Circuit Breaker
Nominal Input Frequency
50Hz or 60Hz
Nominal Voltage
100-110-120VAC / 220-230-240VAC
Display
Status LEDs / Status LEDs+LCD
Transport Package
Standard Export Package
Specification
415* 440* 300mm
Trademark
V-land
Origin
China
Production Capacity
1000000PCS/Year

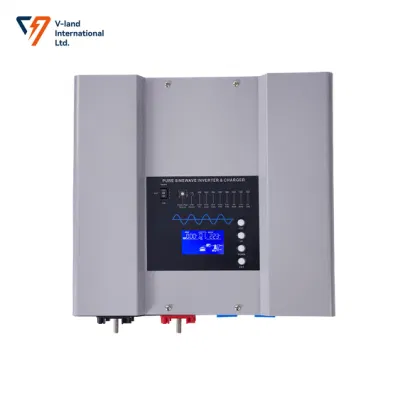

Product Description
| VL-HS | |||||||||
| Model | 1.0KW | 2.0KW | 3.0KW | 4.0KW | 5.0KW | 6.0KW | 8.0KW | 10.0KW | 12.0KW |
| Continuous Output Power | 1.0KW | 2.0KW | 3.0KW | 4.0KW | 5.0KW | 6.0KW | 8.0KW | 10.0KW | 12.0KW |
| Surge Rating(20ms) | 3.0KW | 6.0KW | 9.0KW | 12.0KW | 15.0KW | 18.0KW | 24.0KW | 30.0KW | 36.0KW |
| Output voltage waveform | Pure Sine wave/Same as input(Bypass Mode) | ||||||||
| Nominal Efficiency | >88%(Peak) | ||||||||
| Line Mode Efficiency | >95% | ||||||||
| Power factor | 0.9-1.0 | ||||||||
| Nominal Output Voltage rms | 100-110-120Vac / 220-230-240Vac | ||||||||
| Output Voltage Regulation | ±10% RMS | ||||||||
| Output Frequency | 50Hz ± 0.3Hz/60Hz ± 0.3Hz | ||||||||
| Short Circuit Protection | Yes( 1sec after fault ) | ||||||||
| Typical Transfer Time | 10ms(Max) | ||||||||
| THD | < 10% | ||||||||
| Nominal Input Voltage | 12.0Vdc / 24.0Vdc / 48.0Vdc | 24.0Vdc / 48.0Vdc | 48.0Vdc | ||||||
| Minimum starting voltage | 10.0Vdc / 10.5Vdc for 12Vdc Mode | *2 for 24Vdc, *4 for 48Vdc; | |||||||
| Low battery voltage alarm | 10.5Vdc / 11.0Vdc for 12Vdc Mode | ||||||||
| Low Battery Trip | 10.0Vdc / 10.5Vdc for 12Vdc Mode | ||||||||
| High Voltage Alarm | 16.0Vdc for 12Vdc Mode | ||||||||
| Low Battery voltage recover | 15.5Vdc for 12Vdc Mode | ||||||||
| Idle Consumption- Search Mode | < 25 W when Power Saver On.(Refer to Table ) | ||||||||
| Output Voltage | Depends on battery type (Refer to Table 2.5.2) | ||||||||
| Charger Breaker Rating | 10A | 20A | 30A | 40A | 40A | 40A | 50A | 80A | 80A |
| Max Charge Power Rate | 1/3 Rating Power (Refer to Table 2.5.3) | ||||||||
| Battery Initial Voltage for Start | 10-15.7Vdc for 12Vdc Mode | 15.7Vdc for 12Vdc Mode | |||||||
| Over Charge Protection S.D. | 15.7Vdc for 12Vdc Mode | ||||||||
| Battery Temperature Sensor (Optional) | Yes(Refer to the table ) Variances in Charging Voltage & S.D Voltage Base on the Battery Temperature. | ||||||||
| Input Voltage Waveform | Sine wave (Grid or Generator) | ||||||||
| Nominal Voltage | 100-110-120Vac / 220-230-240Vac | ||||||||
| Max Input AC Voltage | 150VAC For 120Vac LV Mode;300VAC For 230Vac HV Mode; | ||||||||
| Nominal Input Frequency | 50Hz or 60Hz | ||||||||
| Low Freq Trip | 47±0.3Hz for 50Hz, 57±0.3Hz for 60Hz | ||||||||
| High Freq Trip | 55±0.3Hz for 50Hz, 65±0.3Hz for 60Hz | ||||||||
| Overload protection (SMPS load) | Circuit Breaker | ||||||||
| Output Short circuit protection | Circuit Breaker | ||||||||
| Bypass breaker rating | 10A | 20A | 30A | 40A | 40A | 40A | 50A | 80A | 80A |
| Transfer switch rating | 30Amp | 40Amp | 80Amp | ||||||
| Bypass without battery connected | Yes (Optional) | ||||||||
| Max bypass current | 30Amp | 40Amp | 80Amp | ||||||
| Mounting | Wall Mount | ||||||||
| Inverter Dimensions(L* W*H) | 340* 420* 200mm | 425*375*200mm | 560*420*235mm | 655*490*240mm | |||||
| Inverter Housing size (L*W*H) | 415* 440* 300mm | 500*495*300mm | 660*470*310mm | 720*470*290mm | |||||
| Inverter Weight(Solar Chg)KG | 16 | 20 | 26.5 | 31.5 | 33.5 | 37.5 | 56.5 | 58.5 | 61.5 |
| Shipping Weight(Solar Chg)KG | 19 | 22 | 29.5 | 38 | 40 | 44 | 63.5 | 66 | 68.5 |
| Display | Status LEDs / Status LEDs+LCD | ||||||||
| Standard warranty | 2 year(Optional) | ||||||||
1. Pure sine output is suitable for various loads. It can be used with mixed power supply such as mains/diesel generators Automatic switching off
2. 5 functions: mains bypass, mains charging, solar charging, inverter, UPS
3. Built-in MPPT/solar charge controller (controller power 40/60A/80A/120A optional)
4. Contains relay switching and AC/DC circuit breaker, with multiple protections such as undervoltage /overvoltage/short circuit/overload/over temperature
5. DIP switch selection: battery undervoltage point, input AC range, energy saving mode, output frequency, priority mode
6. The efficiency is 3~5% higher than the ordinary power frequency series, and the self-consumption is reduced by 30%~50%
7. Professional off-grid solar system solutions (optional)
8. Remote Control RJ11 / RJ45 and RS232 / 485 Interface Remote Control Panel (optional), App Features Options
9. Pure sine wave series inverters are suitable for renewable energy systems, solar photovoltaic systems, vehicles, ships,Marine and emergency applications.

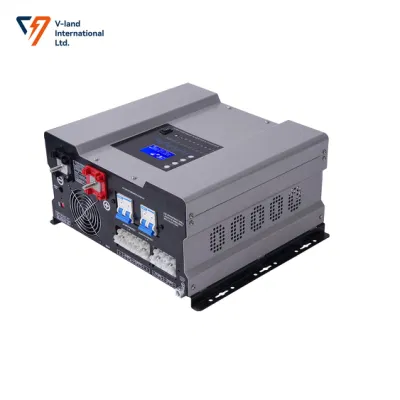

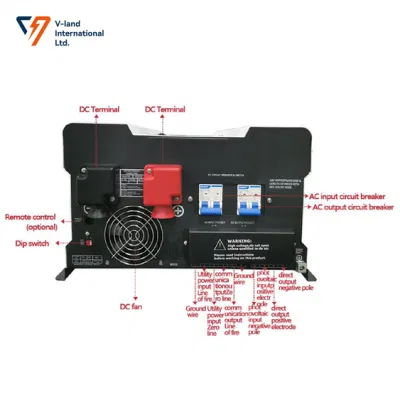

All the plugs should be in one-to-one correspondence as shown in the picture.

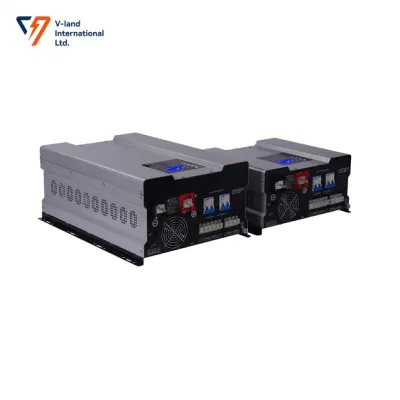

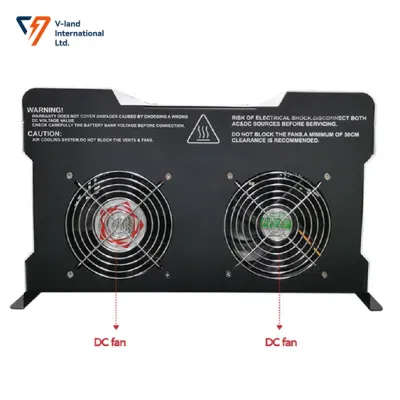

The fan works automatically to prevent the inverter from overheating.
