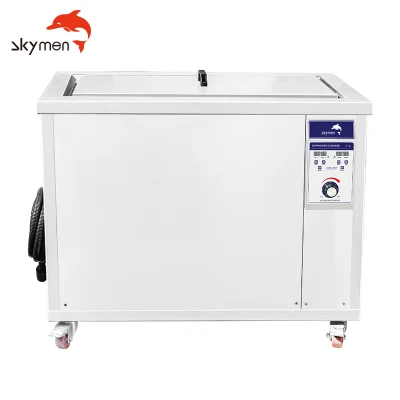

53L Large Industial Multi-Function Advanced Professional Single Tank Ultrasonic Cleaner Medical

Looking for a large industrial ultrasonic cleaner for medical equipment? Our factory produces advanced single tank cleaners, perfect for professional use.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
JP-180ST
Control
PLC
Principle
Physical Cleaning
Certification
CE, RoHS, ISO9001
Condition
New
Customized
Customized
Feature
Clean Thoroughly
Inner Tank Size
500*350*300mm
Package Size
800*620*880mm
Capacity
53L
Timer
1-99min
Optional Frequency
40kHz/28kHz
Transducer
30
Ultrasonic Power
900W Can Be Custom Made
Heating Power
1500W Can Be Custom Made
Filter System
No
Solvent
SUS316 for Strong Acid and Alkaline
Material
Stainless Steel SUS304/SUS316
Mobility
Four Wheels to Move Easily
Machine Type
Industrial Ultrasonic Cleaner
Basket
Layered Design for Different Demand
N.W/G.W
54kg/75kg
Transport Package
Wooden Case
Specification
680*550*735mm
Trademark
Skymen
Origin
Shenzhen
HS Code
847999990
Production Capacity
3000PCS/Month

Product Description

53L 900w Large Industial Multi-Function Advanced Professional Single Tank Ultrasonic Cleaner Medical
1 Model No. JP-180ST
2 Image 53L Large Industial Multi-Function Advanced Professional Single Tank Ultrasonic Cleaner Medical
3 Ultrasonic model Ultrasonic Frequency 28,000 Hz/ 40,000Hz optional, or dual frequency
Material Stainless Steel SUS304
Tank Capacity 53 L
Timer 1~99 minutes adjustable
Heater 20°C to 95°C adjustable
Machine voltage 380V 3 phase
Generator voltage AC 110V/220V
Ultrasonic Power 0-900W
Heating Power 1500 W
Generator customized
Washing basket 1 pc
Caster 4 pcs
Drainage include
Cover  include
Oil skimmer attached tank, pump
4 Packing Tank Size 500*350*300mm( L x W x H )
Unit Size 680*550*735mm  ( L x W x H )
Package Size 800*620*880mm ( L x W x H )
N.W/G.W 54kg/75kg
Warranty 1 year
5 Features 1. Stainless steel SUS304
2. Power adjustable by clockwise, LED display for timer and heater seting,
3. Stainless steel washing basket and Lid,
4. ultrasonic cleaning solutions penetrate virtually any soil type including: oils, residues, solvents, pastes and chemicals and other contaminants are safely lifted and dispersed, leaving a surface appearance that is clean and free of particulate; even in crevasses and internal bores.

6 Application. industry intrument,hardware instrument,scientific laboratory, automotive parts, motor, machine tool,etc.
7 Certificates   CE, ROHS, FCC, ISO9001:2008

Special Features:
1. stainless steel tank has resistance to wear and long work life.
2. tank capacity:53Liter
3.Use just tab water, or industrial alcohol and solvent cleaner for more higher cleaning requirement
4.industrial control chip microcontroller.flexible circuit boards control, more secure & stable
5.with drainage,basket,lid and Multi-direction castors
6. PCB board is independent research and development design production by skymen
7. Fast delivery large stock.

Application:
-Scientific Labs:Eyeglass Frames;Lab Glassware;Optical&Contact Lenses;Pipettesscientific Instruments;Test tubes
-Industrial Manufacturing:Assemblies;Gears;Metal&Plastic Parts;Precision Bearings
-Electronic manufacturing:Capacitors;Ceramic Substrates;PC Boards;Packaging Components;Quartz Crystals
-Medical and Dental Lab:Burs;Blood Oxygenators;Dental Instruments;Syringe Parts;Surgical Instruments
-Jewelry Manufacturing:Chains;Charms;Coins;Intricate Settings;Precious Metals&Gemstones;Watches


If your company has other needs, you can choose the size that suits you according to the chart below
53L Large Industial Multi-Function Advanced Professional Single Tank Ultrasonic Cleaner Medical
How ultrasonic cleaner works:

Electrical energy is converted into mechanical vibrations thanks to special elaborated transducers.These vibrations are transferred into the fluid through the walls of stainless steel.This creates tiny microscopic vacuum bubbles, which cause consecutive implosions (cavitation).The high-energy jets that are thus created can efficiently remove dirt from surfaces an materials placed in the cleaning bath.

An ultrasonic cleaner in your kitchen will save time and reduce effort while providing a safe solution for your kitcheware. With the help of oil remove detergent ,the ultrasonic cleaner could fast and efficient take the oil ,polish the kitcheware.
when using an ultrasonic cleaner on glassware, plasticware, and your lab instruments. Whether you are cleaning oven trays, pans. studies have shown that it can be up to 30 times faster while delivering thoroughly clean results.

53L Large Industial Multi-Function Advanced Professional Single Tank Ultrasonic Cleaner Medical53L Large Industial Multi-Function Advanced Professional Single Tank Ultrasonic Cleaner Medical53L Large Industial Multi-Function Advanced Professional Single Tank Ultrasonic Cleaner Medical53L Large Industial Multi-Function Advanced Professional Single Tank Ultrasonic Cleaner Medical
53L Large Industial Multi-Function Advanced Professional Single Tank Ultrasonic Cleaner Medical

Company profile
Here are the Skymen company.You can know more about us with the details.53L Large Industial Multi-Function Advanced Professional Single Tank Ultrasonic Cleaner Medical53L Large Industial Multi-Function Advanced Professional Single Tank Ultrasonic Cleaner Medical
FAQ:
May I ask which medical equipment can use ultrasonic cleaners?

Application in Medical industry:
cleaning of syringes, surgical instruments,droppers, research laboratory equipment,
glass containers, dental appliances, esophagoscopes, bronchoscopes, proctoscopes, laboratory utensils, etc.


What are the benefits of using ultrasonic cleaners in the medical industry?
1. Clean integration
When using a medical ultrasonic cleaning machine, it is necessary to manually put in medical utensils and cleaning fluid, but after the cleaning machine is turned on, it can be cleaned intelligently and integratedly.
2. Protect the health and safety of medical personnel
Scalpels, glass slides, tweezers, etc. are inevitably sharp in medical equipment. If the equipment is stained with patient's blood, there will inevitably be the possibility of infection during manual cleaning. The use of medical ultrasonic cleaners can avoid manual cleaning and infection.
3. Better cleaning effect
Once the medicines or blood stains on the medical equipment are dry, it is difficult to clean it by hand. Even if there are no stains on the surface, there will still be stubborn bacteria residues. The medical ultrasonic cleaner can produce a large amount in the cleaning solution when it is started. The tiny air bubbles that impact the medical appliance can also penetrate deep into the many gaps of the appliance. The cleaning effect produced by this ultrasonic cavitation is irreplaceable manually, and the medical appliance can be cleaned more thoroughly.



Q: Are you a trading company or a manufacturer?
A: Yes, we are a factory, all machines are manufactured by ourselves, and we can provide customized services according to your requirements.

Q: What is your warranty period?
A: 12 months after on-site commissioning, excluding available spare parts

Q: Are there any installation instructions after receiving the machine?
A: Yes, we provide theoretical and practical training for equipment operators of client companies to standardize operations and maximize equipment production efficiency.
