L7 50Hz/60Hz DC Mini Circuit Breaker

Get high-quality L7 50Hz/60Hz DC Mini Circuit Breaker from our factory. Our products are reliable and durable. Shop now for dependable circuit protection.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
L7
Poles Number
1/2/3/4
Function
Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection
Certification
CE, CCC
Rated Voltage
300V 600V 900V 1200V
Product Name
L7 DC MCB
Rated Current
up to 63A
OEM
Yes
Certificate
Ce/ISO9001/CCC
Electrical Life
4000
Mechanical Life
10000
Protection Degree
IP20
Transport Package
Kayal Carton or as Per Your Requirement.
Trademark
KAYAL
Origin
China
HS Code
1904031931
Production Capacity
200000pieces/Month

Product Description

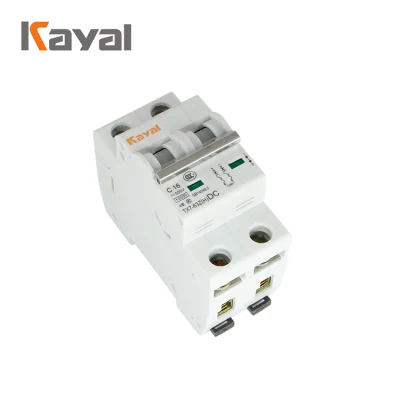

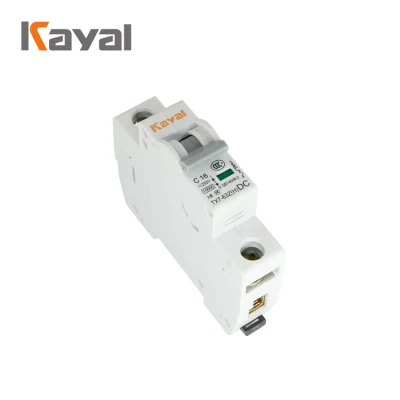

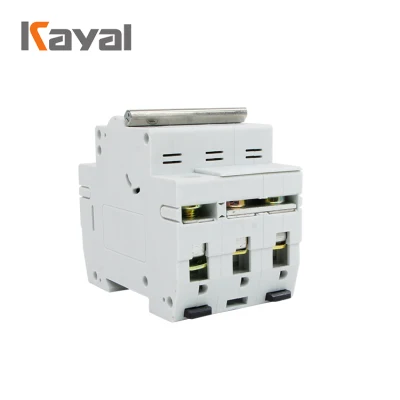

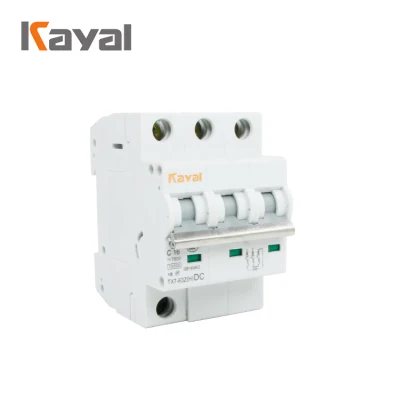

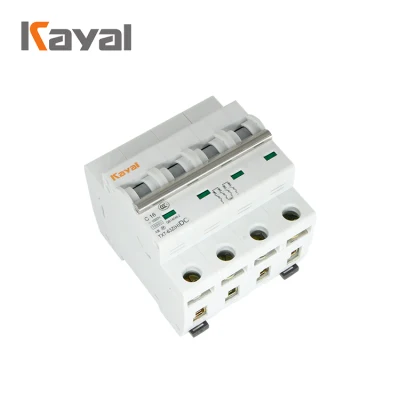

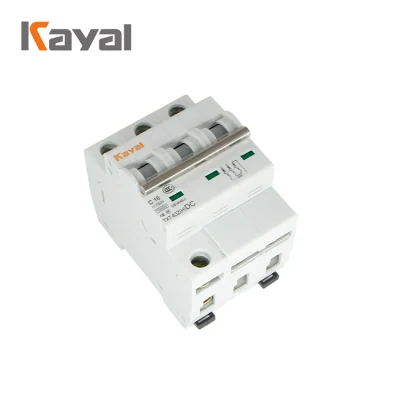

L7 50Hz/60Hz DC Mini Circuit Breaker

L7 50Hz/60Hz DC Mini Circuit Breaker
L7 50Hz/60Hz DC Mini Circuit Breaker
L7 DC MCB Circuit Breaker

 Product Description

 DC MCB Application:

L7 Solar system DC MCB , apply to rating current 63A or less, It is mainly used for the overloading and short circuit protection in DC distribution system equipment and electric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields.



DC MCB Features:

1. Thermoplastic shell, full inlet, impact resistant, recyclable, self extinguishing
2. Super safety: classic U tunnel terminal, to ensure that the line connection is solid and reliable
3. The original air flow, can effectively reduce the temperature between adjacent circuit breaker
4. Safety handle, classic original design, ergonomic



DC MCB Parameters:



Item DC MCB
Pole 1P 2P 3P 4P
Voltage 300VDC 600VDC 900VDC 1200VDC
Current 1A,3A,6A,10A,16A,20A,32A,40,50A,63A
Standard IEC/EN60947
Breaking Capacity 6KA,10KA
Characteristic Curve B,C,D
Working Temperature -5ºC to +40ºC
Protection Degree IP20
Electrical life  More than 8000times
Mechanical life More than 2000times
Dimension(W)X(H)X(D) 18X80X71 36X80X71 54X80X71 72X80X71
Installation 35MM DIN RAIL
Accessory YES
Installation Altitude ≤2000M
L7 50Hz/60Hz DC Mini Circuit Breaker
L7 50Hz/60Hz DC Mini Circuit Breaker
L7 50Hz/60Hz DC Mini Circuit Breaker
L7 50Hz/60Hz DC Mini Circuit Breaker
L7 50Hz/60Hz DC Mini Circuit Breaker
L7 50Hz/60Hz DC Mini Circuit Breaker
L7 50Hz/60Hz DC Mini Circuit Breaker
L7 50Hz/60Hz DC Mini Circuit Breaker
