Basic Info.
Model NO.
YCSi
Structure
MCB
Type
Circuit Breaker
Function
Conventional Circuit Breaker
Certification
ISO9001-2000, CE, CB, CCC, Leakage Protection
Poles
1p+N/2p
Rated Voltage Ue
230V
Rated Vurrent
40A/63A
Communication
WiFi/Zigbee
Frequency
AC 50Hz/60Hz
Transport Package
Standard Packaging
Specification
YCSi
Trademark
CNC
Origin
Zhejiang, China
HS Code
8536200000
Production Capacity
80000 Set/Week

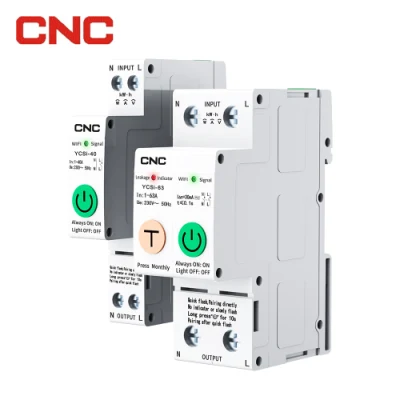

Product Description
Features
· Auto-closing: The product can automatically close the circuit when power is supplied during normal operation on the line, and canalso be set to not close the circuit when power is supplied.
· Remote control: mobile phone APP or computer remote control opening/closing.
· Real-time feedback; real-time feedback of product opening/closing status.
· Timing:Timing, delay opening/closing.
· Sharing control: can share control with multiple people.
· Residual current protection: When the leakage current exceeds the set value or personal electric shock (with leakage protection),the protector automatically disconnects within 0.1s.
·With metering function: can display voltage, current, power and electricity.
Technical Data
| Rated working voltage | AC230V |
| Rated current In | 1-40A/1-63A |
| Life | Electrical life 100000 on/off times |
| Local power consumption | <3W |
| Working voltage range | AC110V-280V |
| Maximum rated output current | 40A/63A |
| Wiring | Using Clamp terminals, the cross-sectional area of the wire can reach 16mm |
| Installation | Installed on a standard TH35 rail |
| RS485 communication | Baud rate: 9600; communication address range: 1-247 |
| Ambient air temperature | -5ºC~+40ºC,the average value within 24 hours does not exceed +35ºC |
| Limiting service temperature | -25ºC~+70ºC |
| Altitude | The altitude of the installation site does not exceed 2000 meters |
| Humidity | a.When the ambien t air temperature is +40ºC, the relative humid ity of the air should not exceed 50%, and there can be a highe r relative humidity at a lower temperature. b. When the monthly average minimum temperature of the wettest month is 25ºC, the monthly average relative humidity is 90%. c. Condensation on the product surface due to temperature changes has been taken into account. |
| Pollution degree | Level 2 |
| Installation Category | Class ll and I |
 |  |  |
 |  |  |
 |  |  |
 |  |  |
 |  |  |
