Low Voltage Electric Power Meter Panel Box Plug-in Tye Type Load Centers

Shop our low voltage electric power meter panel box plug-in type load centers for reliable and efficient power distribution. Made in our factory for top quality.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
TYE 20Way
Measured Signal
Pulse Peak
Type
Energy Meter
Certification
RoHS, ISO, CE
Customized
Customized
Standard
ANSI 12.7
Application
Plug in Circuit Breaker
Waterproof Level
NEMA 3r
Protection Level
IP54
Material
0.8-1.5mm Electro-Galvanized Steel Sheet
Rated Voltage
120/240V
Rated Current
125A
Useing Range
Single Phase 3 Wire
Rated Phase
Dpn
Transport Package
Wooden Package
Specification
CE ROHS
Trademark
OEM
Origin
Zhejiang Yueqing
HS Code
9028901100
Production Capacity
100000PCS/ Month

Product Description

TYE-20125S  flush 125A 120/240V 20WAY  DPN phase
load centers& modular enclosure
TYE series load centers have been designed for safe , relaible distribution and control of electrical power as service entrance equipment in residential ,commercial and ligh industrial premise

Features
1.some of the load centers are made out of high quality electro-galvanized steel sheet of up to 1.2-1.5mm thickness
2.matt-finish polyester poweder coated paint
3.knockouts provides on all sides of the enclosure
4.accept plug in circuit breakers
5.suitable for single phaee three wire 120/240v rated current to 125A
6.wider enclosure offers eas of wiring and move heat dissipation
7.flush and surface mounted designs
8.knockouts for cable entry are provided on top bottom of the enclosure

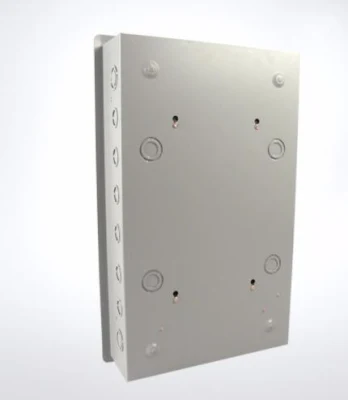

Low Voltage Electric Power Meter Panel Box Plug-in Tye Type Load Centers

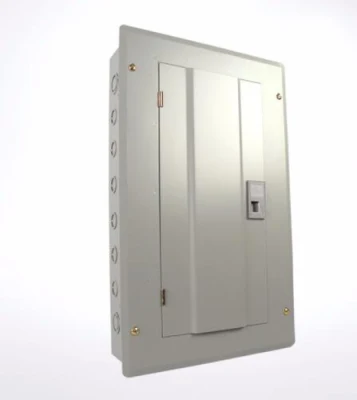

Low Voltage Electric Power Meter Panel Box Plug-in Tye Type Load Centers

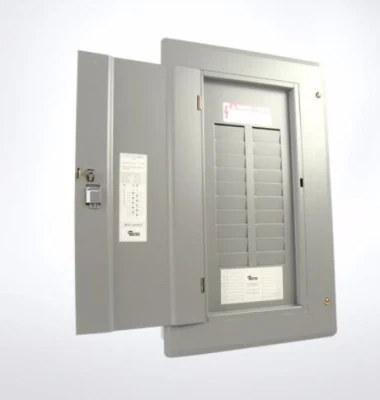

Low Voltage Electric Power Meter Panel Box Plug-in Tye Type Load Centers

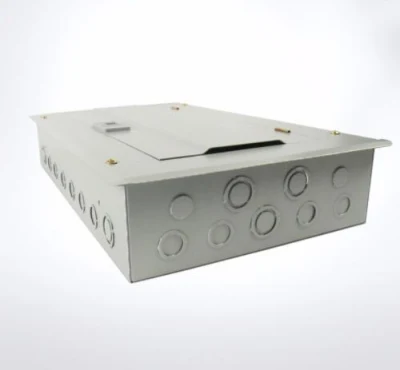

Low Voltage Electric Power Meter Panel Box Plug-in Tye Type Load Centers
Low Voltage Electric Power Meter Panel Box Plug-in Tye Type Load Centers
Low Voltage Electric Power Meter Panel Box Plug-in Tye Type Load Centers
