Basic Info.
Model NO.
MR-FORK-4P
Application
Conduct Electricity
Character
Environmental Protection
Species
Terminal
Shape
U
Interface Type
AC/DC
Type
Fork Type
Material
Red Copper (T2 99.6% )
Production Process
Press
Brand
OEM
Transport Package
Carton Packing
Specification
Red copper and fire-resistant PVC
Trademark
Meanray/OEM
Origin
Yueqing Zhejiang
HS Code
8536909000
Production Capacity
5, 00, 000PCS/Month
Product Description

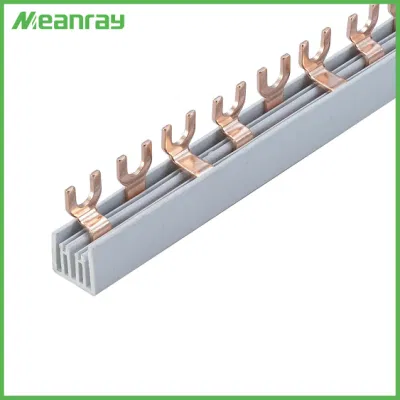

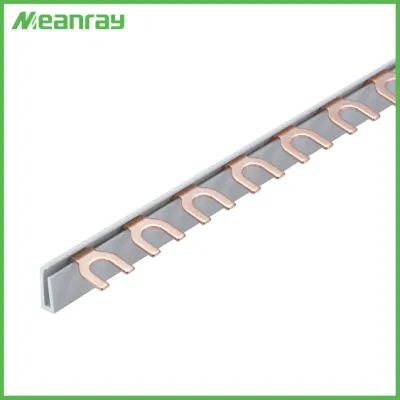

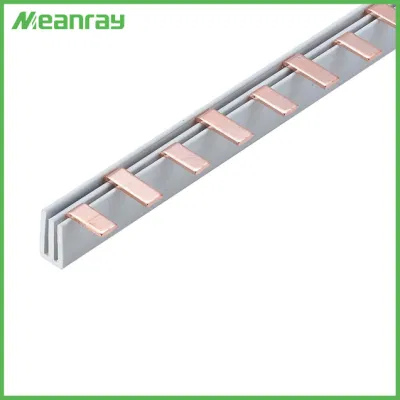

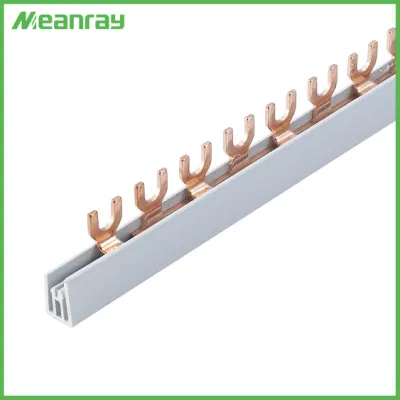

Lowest Price Earth Busbar 4P U Or Fork Type Bus bar 80/100A Mcb Copper Busbar
Product Description of fork type copper busar:
Terminal Block Connector Pure Copper Busbar is used for kinds of circuit breaker, fork type copper busbar ease wiring electrical item,enlarge area, decrease temperature rise and thus increase the electric reliability of electrical items.
Technical features of fork type copper busar:
1. Material is of fire-resistant PVC and redl copper
2. Current rating is up to 125A
3. Rated voltage is up to 415V
4. Applicable ambient temperature -25~+50
5. Standard length 1m, other length tol be made upon request.
6. Good conductivity, low contact resistance, safe and reliable.
How to choose the fork type copper busar:
Packing information:
Workshop for fork type copper busar:
Packing information:
| FORK type | Dimension | PCS/CTN | Packing | G.W kgs | N.W kgs | Material |
| FORK-1P-32A | 1.0*5mm | 200 | 101*22*12 | 26 | 25 | Copper |
| FORK-1P-40A | 1.2*5mm | 100 | 101*12*9 | 14 | 13 | Copper |
| FORK-1P-63A | 1.5*7mm | 100 | 101*12*9 | 16 | 15 | Copper |
| FORK-1P-80A | 1.5*9mm | 100 | 101*14*10 | 21 | 20 | Copper |
| FORK-2P-32A | 1.0*5mm | 50 | 101*14*8 | 15 | 14 | Copper |
| FORK-2P-40A | 1.2*7mm | 50 | 101*14*10 | 18 | 17 | Copper |
| FORK-2P-63A | 1.4*7mm | 50 | 101*14*10 | 21 | 20 | Copper |
| FORK-2P-80A | 1.5*7mm | 50 | 101*14*10 | 23 | 22 | Copper |
| FORK-2P-100A | 1.5*9mm | 50 | 101*14*10 | 23 | 22 | Copper |
| FORK-3P-40A | 1.0*7mm | 50 | 101*22*10 | 20 | 19 | Copper |
| FORK-3P-50A | 1.2*7mm | 50 | 101*22*10 | 22 | 21 | Copper |
| FORK-3P-60A | 1.4*7mm | 50 | 101*22*10 | 24 | 23 | Copper |
| FORK-3P-63A | 1.5*7mm | 50 | 101*22*10 | 27 | 26 | Copper |
| FORK-3P-80A | 1.5*9mm | 50 | 101*22*10 | 30 | 29 | Copper |
Workshop for fork type copper busar:
Copper Busbar Show:
FAQ of fork type copper busar:
FAQ of fork type copper busar:
Buyer: If we need some sample, whether you can supply?
Seller: Yes, we can.
Buyer: Our current is 63A, is ok?
Seller: Our max current is 125A. the current is less than 125A, is ok.
Buyer: Can we use our LOGO?
Seller: Yes, we can use your LOGO and company information
Buyer: Fork type copper busbar is U type copper busbar?
Seller: Yes. it's the same. You can choose fork type copper busbar according to your requirements.
