Basic Info.
Model NO.
SC-DLQ-003
Poles Number
1p/2p/3p/4p
Type
Circuit Breaker
Function
Circuit-Breaker Failure Protection, Overcurrent Protection
Certification
ISO9001-2000, CE
Rated Voltage
230/400V
Bcd Curve
C
Rated Frequency
50/60Hz
Product Name
Small Circuit Breaker
Certificate
CCC,CE,ISO9001
Warranty
2 Years
Rated Current
1A-63A
Transport Package
Color Box/Blier Card/Carton
Specification
COPPER
Trademark
OEM
Origin
Zhejiang, China
HS Code
8536200000
Production Capacity
500, 000 PCS/Month
Product Description
Packaging & delivery
1P MCB 180pcs/ctn OR 120pcs/ctn2P MCB 900pcs/ctn OR 60pcs/ctn
3P MCB 60pcs/ctn OR 40pcs/ctn
4P MCB 45pcs/ctn OR 30pcs/ctn
Carton Size 0.028cbm
G.W./N.W.: 15.5/14.5kgs
Port :ningbo yiwu shanghai
Lead time:
| Quantity(pieces) | 1 - 50 | 51 - 500 | 501 - 1000 | >1000 |
| Lead time (days) | 9 | 10 | 15 | To be negotiated |
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Initiate an inquiry:

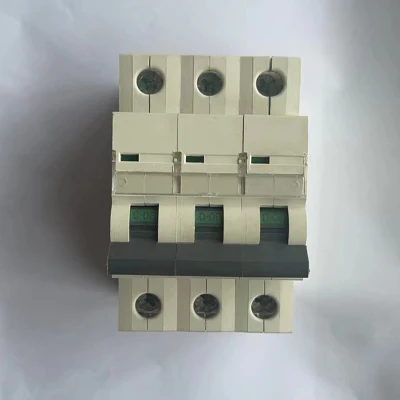

If the quantity is large, please initiate an inquiry to consult the price.SC-DLQ-003 is applicable to AC 50Hz/60Hz, 230V single pole, 400V double, three and four pole lines for overload and short circuit protection, with rated current up to 63A. It can also be used for infrequent line switching under normal conditions. The circuit breaker is applicable to the lighting distribution system of industrial enterprises, commercial areas, high-rise buildings and residential buildings. Conform to IEC60898 standard.
SPECIFICATIONS
| DZ47-63DC Series Circuit Breaker | SC-DLQ-003 | |
| Frame Degree Rated Current (A) | 63A | |
| Pole | IP, 2P, 3R 4P | |
| Rated Operating Voltage (VDC) | lP250\42P500\43P750\44P1000V | |
| Rated Current In (A) | 1,2,3,4,6,10,16,20,25,32,40,50,63 | |
| Rated Insulation Voltage Ui (VDC) | 1200VDC | |
| Rated Impact Voltage Uimp (kV) | 4kV | |
| Ultimate Breaking Capacity leu (kA) | 4.5kA/6kA | |
| Run Breaking Capacity les (%lcu) | 75% | |
| Curve Type | C | |
| Trip Type | Thermal-magnetic | |
| Mechanical Life | Actual Average Value | 20000 |
| | Standard Value | 8500 |
| Electric Life | Actual Average Value | 6000 |
| | Standard Value | 2500 |
CONDITION AND INSTALLATION
| Wiring Capacity (mm2) | 32A, 1~25 mm2J^40A, 10~35mm2 | ||||
| Ambient Temperature (*C) | -20-+70 | ||||
| Altitude | ^2000 | ||||
| Relative Humidity | W95% | ||||
| Pollution Level | 3 | ||||
| Installation Environment | No obvious shock and vibration | ||||
| Installation Category | Class III | ||||
| Installation | DIN Standard rail | ||||
| Dimensions(W)x(H)x(Deep) | W | 18 | 36 | 54 | 72 |
| | H | 80 | 80 | 80 | 80 |
| | Deep | 71 | 71 | 71 | 71 |
| Weight (kg) | 0.12 | 0.24 | 0.36 | 0.48 | |
