- Overview
- Product Description
Basic Info.
Model NO.
THQC
Rated Voltage (V)
AC120/240
Transport Package
Exporting Carton
Specification
15A to 100A
Trademark
SONTUOEC. WZSTEC
Origin
Wenzhou, China
HS Code
853620000
Production Capacity
3000pieces/Day
Packaging & Delivery
Package Size
46.00cm * 24.00cm * 33.00cm
Package Gross Weight
0.015kg
Product Description
1. Application
THQC series circuit breaker is for overload & short circuit protection which used in residential and industrial distribution system. Characteristics: Heat-resistant thermoset cases and covers add stability and structural rigidity; Trip are easy to spot because handles trip to the center position; The dedicated calibration screw is cemented(not simply papered over) to prevent shifting, the result is stable calibration for optimum trip performance.
| Specifications: | |
| Type | THQC |
| Number of Poles | 1P,2P,3P |
| Rated Current (A) | 6, 10, 15, 20, 25, 30, 40, 50, 60,70,80,90,100 |
| Rated Voltage (V) | AC120/240 |
| Rated frequency | 50/60Hz |
| Breaking Capacity (A) | 3000 |
| Electrical Life (Times) | 4000 |
| Mechanical Life (Times) | 16000 |
Body Material Bakelite

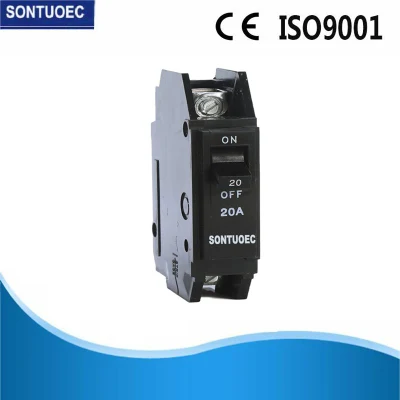

Model Number THQC Series Mini Circuit Breaker
Color Black
Number of Poles : 1P, 2P, 3P
Rated current (A) :15, 20, 30, 40, 50, 60, 75, 100
Rated Voltage (V) :110/220 (1P), 240/415 (2P), 415 (3P)
Breaking Capacity (A) :5000 (240V); 10KA(110V)
Electrical Life (Times) :6000
Type: Din Rail instation
Mechanical Life (Times): 14000
Degree of protection: IP20
THQC series are mounted in the illuminating distribution board and used in guesthouses, block of flats, high buildings, squares, airports, railway stations, plants and
enterprises etc, in AC circuits 240V (single pole)up to 415V (3 pole) 50Hz for protection of overload short circuit and for circuit change-over in lighting system.
