Basic Info.
Model NO.
ALF
Poles Number
1
Type
Circuit Breaker
Function
RCCB
Certification
ISO9001-2000, CE, CB
Standard
En/IEC60898-1
Protection
Overload and Short Circuit
Rated Current
2,4,6,10,20,32A
Rated Voltage
240V
Frequency
50-60Hz
Type of Trip
Thermal /Magnetic Release
Type of Terminal
Pin Type
Number of Poles
1p +N
Electrical Endurance
4000
Mechanical Endurance
10000
Transport Package
Carton
Specification
small
Trademark
ELECO
Origin
Zhejiang, China
Production Capacity
200000PCS/Month
Product Description

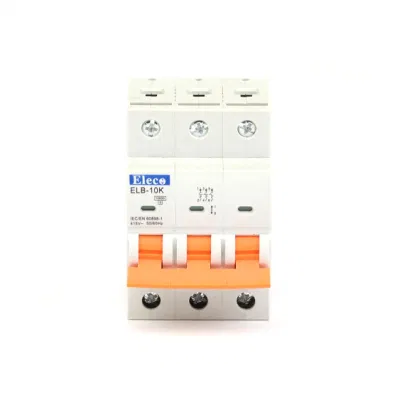

High quality Mini Circuit Breaker with CE Certificates
Technical data
About US
ELECO Electric is one of the most specialized manufacturers and exporters for modular electric terminal devices for household and similar installations in China.The wide range products under manufacturing covers Miniature Circuit Breaker (MCB), Residual Current Circuit Breaker (RCCB), Residual Current Circuit Breakers with overcurrent protection (RCBO), Switch disconnector, Distribution Box, Moulded Case Circuit Breaker (MCCB), Air Circuit Breaker (ACB), AC Contactor, Magnetic Starter, Motor Protection Circuit Breaker, Thermal Relay AND K.W.H meter etc. Our company takes the reputation as one of the largest manufacturers of electro-magnetic type RCCB and RCBO. OEM or ODM projects are fully accepted, now our company is cooperating with a number of renowed international corporationg for such projects.
Technical data
| Standard | EN/IEC60898-1 |
| Breaking capacity | 3KA, 4.5KA,6KA |
| Protection | Overload and short circuit |
| Rated insulation voltage Ui | 250V |
| Rated impulse withstand voltage Uimp | 4KV |
| Rated current In | 2,4,6,10,13,16,20,25,32A |
| Rated voltage | 240VAC |
| Number of poles | 1P+N |
| Type of trip | Thermal /magnetic release |
| Type of terminal | Pin type |
| Protection degree | IP20 |
| Installation | Mounting on 35mm DIN Rail |
| Width | 17.8mm per pole |
| Electrical endurance | 4000 |
| Mechanical endurance | 10000 |
