Product Description

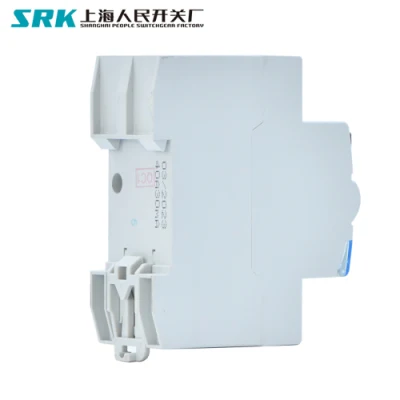

China top500 enterprise factory price 30MA 100MA 300MA 2 POLES 4 POLES DP FP rccb 63a
Technical parameters
Standard | IEC/EN 61008-1 AS/NZS61008.1 | |
Electrical features | Model No. | VML01 |
Poles | 2P, 4P | |
Rated current In | 16A, 25A, 32A, 40A, 63A, 80A, 100A | |
Rated Sensitivity I△n | 10mA(2P/4P 16A,25A.32A/40A), 30mA, 100mA, 300mA | |
Rated voltage Ue | 2P: 240V 4P: 415V | |
Insulation voltage Ui | 415V | |
Rated frequency | 50/60 Hz | |
Rated residual making and breaking capacity I△m | 1500A | |
Short-circuit current Inc=I△c | 6000A, 10000A | |
Type (wave form of the earth leakage sensed) | AC, A, ASi, S | |
break time under I△n | ≤0.1s(Normal type), 10ms~300ms(ASi type). 150ms~500ms(S type) | |
Rated impulse withstand voltage(1.2/50) Uimp | 4kV | |
Dielectric test voltage at ind. Freq. for 1 min | 2.5 | |
Pollution degree | 2 | |
Mechanical features | Electrical life | ≥2000 |
Mechanical life | ≥2000 | |
Fault current indicator | Yes | |
Terminal protection degree | IP20 | |
Ambient temperature (with daily average≤35ºC) | -25ºC to 50ºC | |
Storage temperate | -30ºC to 70ºC | |
Installation | Terminal connection type | Cable/Pin-type busbar |
Terminal size top/bottom for cable | 25-35 mm² | |
18-3/18-2 AWG | ||
Terminal size top/bottom for busbar | 10/16 mm² | |
18-8/18-5 AWG | ||
Tightening torque | 2.5 N·m | |
22 In-Ibs. | ||
Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device | |
Connection | From top and bottom |
Certificate |
FAQ |
1. Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A: Yes , We have product catalogue.Please contact us on line or send an Email to sending the catalogue.
2. Q: I need your price list of all your products, do you have a price list
A: We do not have a price list of all of our products. Because we have so many items,and it's impossible to mark all of their price on a list.And the price are always changing because of the producing cost.If you want to check any price of our products, please feel free to contact us.We will send offer to you soon! Five year guarantee type A type AC dp fp 2p 4p 25A 32A 40A 63A 80A 100A 30MA 100MA 300MA rccb switch
3. Q: I can't find the product on your catalogue, can you make this product for me?
A: Our catalogue shows most of our products,but not all.So just let us know what product do you need,and how many do you want.If we do not have it, we can also design and make a new mould to produce it.For your reference,making a ordinary mold will take about 35-45 days."
4. Q : Can you make customized products and customized packing?
A: Yes.We made a lot of customized products for our customer before. About customized packing,we can put your Logo or other info on the packing.There is no problem.Just have to point out that ,it will cause some additional cost.
5. Q: Can you provide samples ? Are the samples free ?
A: Yes,we can provide samples.Normally,we provide 1-3pcs free samples for test or quality checking.
But you have to pay for the shipping cos.If you need many items, or need more qty for each item, we will charge for the samples."
6. Q: What kind of payment do you accept ? Can I pay RMB ?
A: We accept T/T, Western Union . Please be sure that we can receive the same amount of the Invoice. And you can pay money In RMB. No problem."5 year guarantee Factory price type a type ac dp fp 6ka 10ka 16a 25a 32a 40a 63a 80a 100a rccb 30ma
7. Q : What about your delivery time?
A: We have a lot of products in stock.We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you."
8. Q : How to ship my order ? Is it safe?
A: For small package, we will send it by Express, such as DHL,FedEx,UPS,TNT,EMS.That's a Door to Door service.
For big packages, we will send them by Air or By sea.We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery."
9. Q: Do you have a guarantee of your product quality?
A: We have a guarantee of 5 year.
10. Q: Can I become an Agent / Dealer of SRK products?
A: Welcome! But please let me know your Country/Area fisrt,We will have a check and then talk about this.If you want any other kind of cooperation,do not hesitate to contact us." 100-month guarantee din rail 6ka 10ka 2P 4P 16A 20A 25A 32A 40A 63A 80A 100A RCCB rcd main switch
