PRODUCTS DETAILS

Basic Info.

Model NO.
DAM11
Poles Number
3
Type
Circuit Breaker
Function
Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection
Certification
ISO9001-2000, CE, CB, CCC, Kema, Asta, Semko, RoHS
Cover
BMC Unflaming Material
Base
BMC Unflaming Material
Terminal
with Terminal Box
Neutral Pole
Left Side
Rated Insulation Voltage
1000V
Rated Operation Voltage
400/415V
Transport Package
Carton
Specification
16A-1250A
Trademark
CDADA, OEM, ODM
Origin
Shanghai, China
HS Code
8536200000
Production Capacity
40000PCS/Month

Product Description

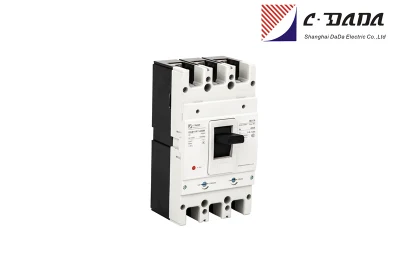

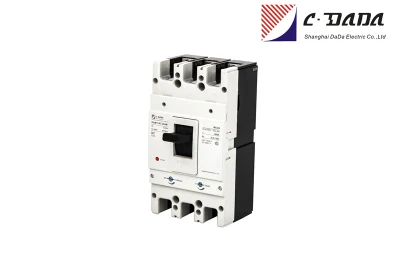

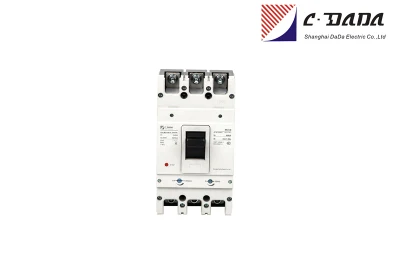

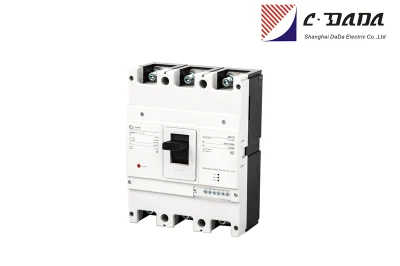

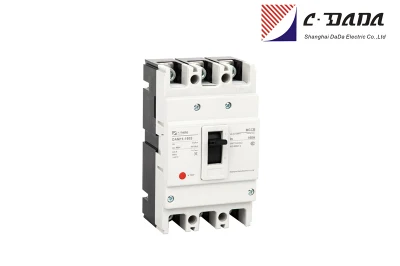

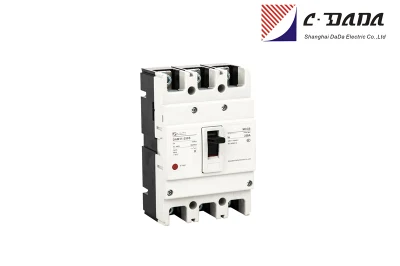

DAM11 Series Moulded-case Circuit Breaker
Product overview

DAM11, DAM11LY, DAM11RT, DAM11E and DAM11EL series of circuit breakers are new upgraded circuit breakers researched and developed by the company combined with the advantages of similar international products and demand of domestic and international markets.
With insulation voltage up to 1000V, the circuit breaker is applicable for distribution systems of AC50Hz, rated working voltage 690V and rated working current from 10A to 800A, used to distribute electric power energy, protect circuits and power equipment against overload, short circuit, under voltage and so on, also can be used for infrequent startup of motor and protect it from overload, short circuit or under voltage.
It is featured with small size, high breaking, short flashover, etc., is the ideal product for users. It can be vertically installed or horizontally installed.
DAM11DC series DC moulded-case circuit breaker (hereinafter referred to as circuit breaker) is suitable for DC systems of rated voltage up to and including DC 1000V and rated current 10~800A, used to distribute electric power energy, protect circuits and power equipment against overload, short circuit and so on.
The products can be fed with wires from top and bottom, and it is polarity-free.
It complies with the standards IEC60947-2, GB14048.2, etc.
Ambient and installation conditions

 Altitude up to 2000m;
 Ambient medium temperature should be within -5ºC to +40ºC (+45ºC for marine products);
 It can withstand the effect of damp air;
 It can withstand the effect of moulds;
 It can withstand the effect of nuclear radiation;
 The max inclination is 22.5ºC.
 It still can work reliably when the ship subjects to normal vibration;
 t can still work reliably if the product subjects to the earthquake (4g).
 Places where the surrounding medium is free from explosion danger, and far away  from gas or conductive dust that would erode the metal or destroy the insulation;
Keep away from rain or snow.
DAM11 thermal overload technical data sheet OEM 2p, 3p, 4p 0.7-1in 16A-1250A Electrical Circuit Breaker Industrial Use 1250A Electronic MCCB OEM 2p, 3p, 4p 0.7-1in 16A-1250A Electrical Circuit Breaker Industrial Use 1250A Electronic MCCB OEM 2p, 3p, 4p 0.7-1in 16A-1250A Electrical Circuit Breaker Industrial Use 1250A Electronic MCCB OEM 2p, 3p, 4p 0.7-1in 16A-1250A Electrical Circuit Breaker Industrial Use 1250A Electronic MCCB OEM 2p, 3p, 4p 0.7-1in 16A-1250A Electrical Circuit Breaker Industrial Use 1250A Electronic MCCB OEM 2p, 3p, 4p 0.7-1in 16A-1250A Electrical Circuit Breaker Industrial Use 1250A Electronic MCCB
Frame current (A) 125 160 250 400 630 800
Model DAM11-125C DAM11-125S DAM11-125H DAM11-160C DAM11-160S DAM11-160H DAM11-250C DAM11-250S DAM11-250H DAM11-400S DAM11-400H DAM11-630S DAM11-630H DAM11-800S DAM11-800H
Pole number 1, 2, 3, 4 2, 3, 4 3, 4 3, 4 3, 4 3, 4
Rated current (A) 10, 16, 20, 32, 25, 40, 50,63, 80, 100, 125 63, 80, 100, 125, 140, 160
100, 125, 140, 160, 180,200, 225, 250
250,315,350,400 250, 315, 350, 400, 500, 630 500, 630, 700, 800,1000,1250
Rated voltage (V) AC400V AC400V AC400V AC400V AC400V AC400V
Rated insulation voltage (V) AC1000V AC1000V AC1000V AC1000V AC1000V AC1000V
Short-circuit breaking capacity(KA)Icu/Ics AC400V 10/15 18/15 25/18 20/15 25/18 35/25 25/15 25/18 35/25 35/25 50/35 35/25 50/35 50/35 65/65
Operating cycle number Electrical life 6000 3000 3000 2000 2000 1500
Mechanical life 9000 7000 7000 4000 4000 4000
Outline dim(mm) 1P 25-130-68-90 - - -
a-b-c-ca 2P 50-130-68-90 60-155-68-90 60-155-88-115
  3P 75-130-68-90 90-155-68-90 90-155-88-115 105-165-68-92 105-165-88-115 140-257-103-155 140-257-103-155 210-275-103-155
4P 100-130-68-90 120-155-68-90 120-155-88-115 140-165-68-92 140-165-88-115 184-257-103-155 184-257-103-155 280-275-103-155
Weight (kg) 1P 0.32 - - -
2P 0.5 0.55 1 1.1 1.5 1.7 5.5 5.7 9.5
3P 0.55 0.65 1.1 1.2 1.9 2.1 7 7.5 12.5
4P 0.65 0.8 1.4 1.5
Electric operating device (MD)
External driving operating handle
Automatic release Thermal electromagnetic type Thermal electromagnetic type Thermal electromagnetic type
DAM11RT thermal adjustable and magnetic adjustable (TAMA) technical data sheet OEM 2p, 3p, 4p 0.7-1in 16A-1250A Electrical Circuit Breaker Industrial Use 1250A Electronic MCCB OEM 2p, 3p, 4p 0.7-1in 16A-1250A Electrical Circuit Breaker Industrial Use 1250A Electronic MCCB OEM 2p, 3p, 4p 0.7-1in 16A-1250A Electrical Circuit Breaker Industrial Use 1250A Electronic MCCB OEM 2p, 3p, 4p 0.7-1in 16A-1250A Electrical Circuit Breaker Industrial Use 1250A Electronic MCCB OEM 2p, 3p, 4p 0.7-1in 16A-1250A Electrical Circuit Breaker Industrial Use 1250A Electronic MCCB
Frame current (A) 160 250 400 630 1250
Model DAM11RT-160S DAM11RT-160H DAM11RT-250S DAM11RT-250H DAM11RT-400S DAM11RT-400H DAM11RT-630S DAM11RT-630H DAM11RT-1250S DAM11RT-1250H
Pole number 3, 4 3, 4 3, 4 3, 4 3, 4
Rated current (A) 20-25, 25-32, 32-40, 40-50, 50-63, 100-125, 125-160, 160-200, 200-250A 200-250, 250-320,320-400 400-500, 500-630 630-800,800-1250
63-80,80-100, 100-125A, 125-160A AC400V AC400V AC400V
Rated voltage (V) AC400V AC400V AC1000V AC1000V AC1000V
Rated insulation voltage (V) AC1000V AC1000V 35/25 50/35 35/25 50/35 50/35 65/50
Short-circuit breaking capacity(KA)Icu/Ics AC400V 25/18 35/25 25/18 35/25 2000 2000 1500
Operating cycle number Electrical life 3000 3000 4000 4000 4000
Mechanical life 7000 7000 1000 1000 1000
Outline dim(mm) a-b-c-ca
3P 90-155-68-90 90-155-88-115 105-165-68-92 105-165-88-115 140-257-103-155 140-257-103-155 210-275-103-155
4P 120-155-68-90 120-155-88-115 140-165-68-92 140-165-88-115 185-257-103-155 185-257-103-155 280-275-103-155

Weight (kg) 3P 1 1.1 1.5 1.7 5.5 5.7 9.5
4P 1.1 1.7 1.9 2.1 7 7.5 12.5
Electric operating device (MD)
External driving
operating handle
Automatic release Thermal electromagnetic type Thermal electromagnetic type
