Product Description

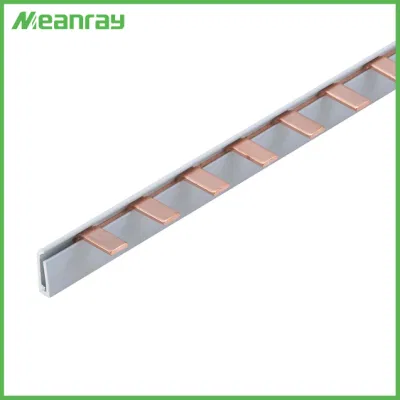

Product description of C45 MCB Busbar Insulator :
Terminal Block Connector Pure Copper Busbar is used for kinds of circuit breaker, C45 MCB Busbar Insulator ease wiring electrical item,enlarge area, decrease temperature rise and thus increase the electric reliability of electrical items.
Technical features of C45 MCB Busbar Insulator:
1. Material is of fire-resistant PVC and redl copper
2. Current rating is up to 125A
3. Rated voltage is up to 415V
4. Applicable ambient temperature -25~+50
5. Standard length 1m, other length tol be made upon request.
6. Good conductivity, low contact resistance, safe and reliable.
Packing information:
| C45 TYPE copper busbar | Dimension | PCS/CTN | Packing | G.W kgs | N.W kgs | Material |
| C45-1P-20A | 1.0*5mm | 200 | 101*22*12 | 26 | 25 | Brass |
| C45-1P-32A | 1.0*5mm | 100 | 101*12*9 | 14 | 13 | Copper |
| C45-1P-40A | 1.2*5mm | 100 | 101*12*9 | 16 | 15 | Copper |
| C45-1P-63A | 1.5*7mm | 100 | 101*14*10 | 21 | 20 | Copper |
| C45-1P-80A | 1.5*9mm | 100 | 101*14*10 | 23 | 22 | Copper |
| C45-1P-100A | 1.8*9mm | 100 | 101*14*10 | 26 | 25 | Copper |
| C45-1P-125A | 2*10mm | 100 | 101*14*12 | 30 | 29 | Copper |
| C45-2P-20A | 1.0*5mm | 100 | 101*22*12 | 26 | 25 | Brass |
| C45-2P-32A | 1.0*5mm | 100 | 101*22*12 | 26 | 25 | Copper |
| C45-2P-40A | 1.2*5mm | 50 | 101*14*10 | 16 | 15 | Copper |
| C45-2P-63A | 1.5*7mm | 50 | 101*14*10 | 18 | 17 | Copper |
| C45-2P-80A | 1.5*9mm | 50 | 101*14*10 | 20 | 19 | Copper |
| C45-2P-100A | 1.8*9mm | 50 | 101*14*12 | 23 | 22 | Copper |
| C45-3P-20A | 1.0*5mm | 50 | 101*16*14 | 19 | 18 | Brass |
| C45-3P-32A | 1.0*5mm | 50 | 101*16*14 | 19 | 18 | Copper |
| C45-3P-40A | 1.2*5mm | 50 | 101*16*14 | 20 | 19 | Copper |
| C45-3P-63A | 1.5*7mm | 50 | 101*22*10 | 26 | 25 | Copper |
| C45-3P-80A | 1.5*9mm | 30 | 101*22*10 | 29 | 28 | Copper |
| C45-3P-100A | 1.8*9mm | 50 | 101*22*12 | 24 | 23 | Copper |
| C45-3P-80A | 1.7*8mm | 50 | 101*22*10 | 30 | 29 | Copper |
| C45-3P-100A | 2*10mm | 30 | 101*14*10 | 26 | 25 | Copper |
Workshop for C45 MCB Busbar Insulator:
FAQ of C45 MCB Busbar Insulator :
Buyer: If we need some sample, whether you can supply?
Seller: Yes, we can.
Buyer: Our current is 63A, is ok?
Seller: Our max current is 125A. the current is less than 125A, is ok.
Buyer: Can we use our LOGO?
Seller: Yes, we can use your LOGO and company information
Buyer: C45 type copper busbar only used for C45/DZ47 circuit breaker?
Seller: No. Used for kinds of MCB. More contact area and conductive performance is better
