Product Description
Application:
Remote intelligent control of homes, student dormitories, enterprises, municipal works, street lamps, farms, rental houses, water pumps, floor heating, water heaters, etc.
Feature:

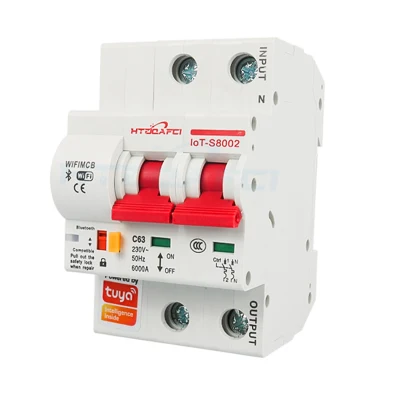

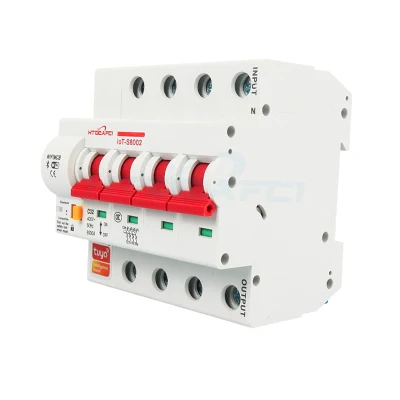

WiFi Intelligent Circuit Breaker is suitable for AC 50/60Hz, rated voltage 110V and 230V 400V, rated current from 16A to 125A line for protection against overload, short circuit and isolation; also as a smart reclosing breaker, also has a function of mobile phone worldwide remote control on/off circuit, timing on/off circuit, delay on/off circuit, cycle on/off circuit.
Home Automation has never been this Smart, Simple or Affordable with the Tuya SmartLife solution for your Home, Office or Factory. Complete control over a wide devices & appliances from ANYWHERE via your mobile phone or simply your voice.Works with Amazon Alexa , Google home and supports IFTTT on the Fastest and most Stable Platform available.
Smart MCB can be used to make any home, office or factory 230V Smart. Control any high current device remotely via your phone from any location. Allows for both 'smart switching' and manual operation and includes a safety switch.
| Standards Compliant | GB10963.1;IEC60898-1 |
| Rated Voltage | AC 110V 230V 1P/2P, AC 400V 3P/4P |
| Frequency | 50/60Hz |
| Number of poles | 1P 2P 3P 4P |
| Pollution Level | 2 |
| Protection Level | IP20 |
| Remote control | Use smartphone (the smartphone must connect to the internet in WiFi or 3g/4g) |
| Specified Use Temperature | -25ºC ~ + 65ºC |
| Rack Rated Current | 125A |
| Rated Current | 16A ,25A,32A, 40A, 63A, 80A, 100A, 125A |
| Instantaneous Trip Type | C |
| Rated Short-circuit Breaking Capacity | 6KA |
| Rated Impulse Withstand Voltage | 6KV |
| Mechanical life | 10,000times |
| Electrical life | 6,000times |
Single package size: 10X11X11 cm
Single gross weight:0.500 kg
Package Type: inner bag+inner color box+ out carton
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
