Basic Info.
Model NO.
RDB5-63 C25
Arc-extinguishing Medium
Air
Installation
Fixed
Structure
MCB
Poles Number
1
Type
Circuit Breaker
Function
Conventional Circuit Breaker
Certification
ISO9001-2000, CE, CB, CCC
Model No.
Rdb5-63
Frequency of Operation
200,000poles/Day
Transport Package
Standard Export Packing
Specification
Carton
Trademark
PEOPLE
Origin
Wenzhou, Zhejiang
HS Code
8536200000
Production Capacity
1000000PCS/Month
Packaging & Delivery
Package Size
35.00cm * 25.00cm * 10.00cm
Package Gross Weight
1.500kg
Lead Time
20 days (1 - 501 Pieces)
To be negotiated ( > 501 Pieces)
To be negotiated ( > 501 Pieces)
Product Description
Application

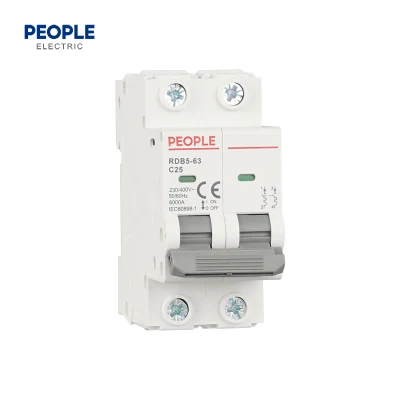

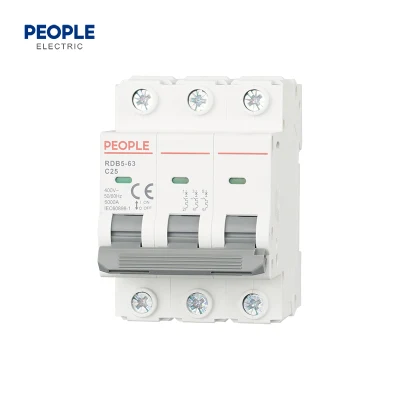

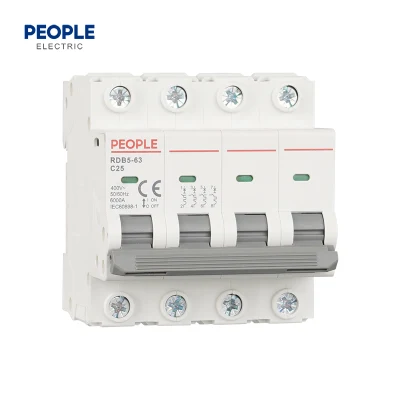

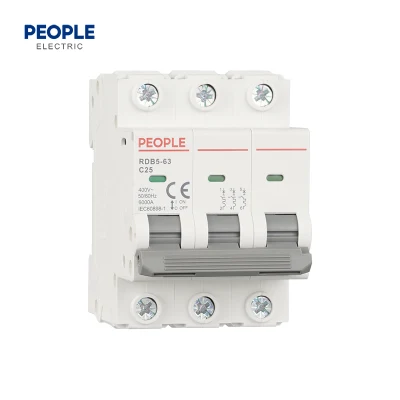

RDB5-63 miniature circuit breaker is applicable to a circuit of AC50/60Hz, 230V (single phase), 400V(2,3, 4 phases), for overload and short circuit protection. Rated current up to 63A. It also can be used as a switch for an infrequent conversion line. It is mainly used in domestic installation, as well as in commercial and industrial electrical distribution systems. It conforms with the standard of IEC/EN60898-1.
Normal working & installment conditions
1. Ambient temperature: -5ºC~+40ºC, 24 hours average temperature not exceed +35ºC.
2. Installment plance altitude: ≤2000m
3. Gas relative humidity:not exceed 50% at +40ºC, higher humidity allowed at lower temperature.
4. Pollution degree: 2 class
5. Installment condition: Mounted in the place without obvious impact or shock, no dangerous(explosion) dielectric without corrosive metal or damaging isolation gas(conductive dust).
6. Installment method: TH35-7.5 mounted rail, can be installed in distribution board, case or box. Generally mounted vertically. Tilted angle between mounting face and vertical face not exceed ±5°.
7. Mounted Category: II,III class.
Normal working & installment conditions
1. Ambient temperature: -5ºC~+40ºC, 24 hours average temperature not exceed +35ºC.
2. Installment plance altitude: ≤2000m
3. Gas relative humidity:not exceed 50% at +40ºC, higher humidity allowed at lower temperature.
4. Pollution degree: 2 class
5. Installment condition: Mounted in the place without obvious impact or shock, no dangerous(explosion) dielectric without corrosive metal or damaging isolation gas(conductive dust).
6. Installment method: TH35-7.5 mounted rail, can be installed in distribution board, case or box. Generally mounted vertically. Tilted angle between mounting face and vertical face not exceed ±5°.
7. Mounted Category: II,III class.
Technical specifications
