Basic Info.
Model NO.
PZ-30
Application Range
Power Plants
Shell Material
Steel Plate
Shell Protection Grade
IP30
Brand
Kodery
Transport Package
Iron Case/Wooden Case
Specification
Standard or customization800*1500*2300
Trademark
KODERY
Origin
China
HS Code
8537209000
Production Capacity
2000 Pieces/Week
Product Description

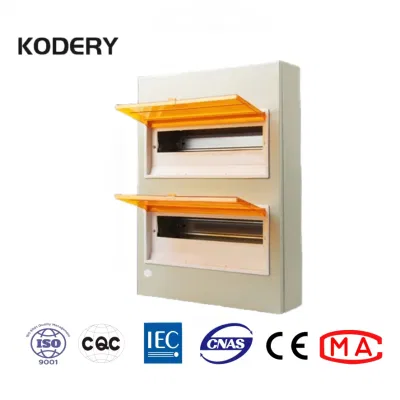

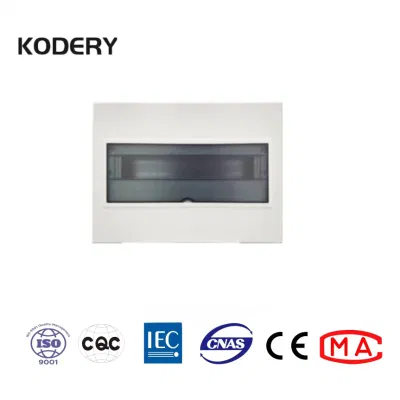

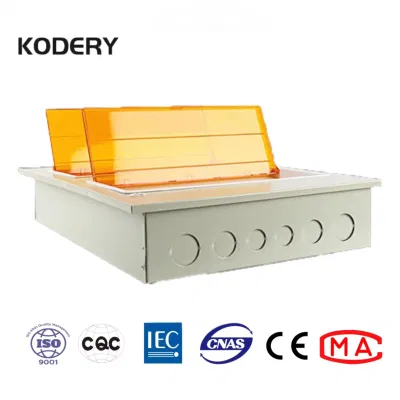

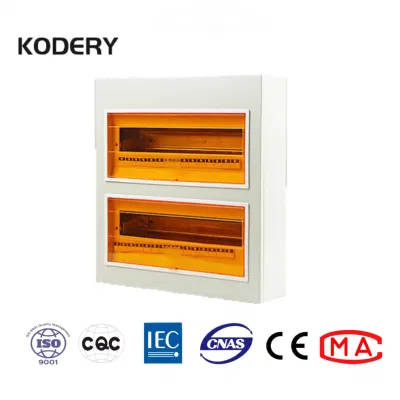

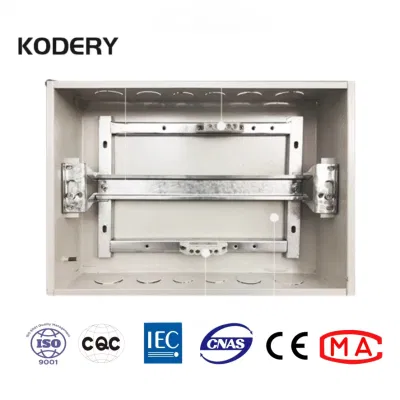

PZ30 consumer unit is one of termination combination electric box, suitable for various living house, high buildings, hotel, marketplace, hospital, mineral enterprise and etc. Comply with GB7251.3-2006 Low voltage switchgear and controlgear standard.
| Rated operating voltage | AC380V or AC220V |
| Maximum rated operating current | 100ARated |
| insulation voltage | 500V |
| Rated Frequency | 50Hz |
| Degree of protection | IP30 |
| Rated short-time withstand current | 6KA |
| No. | Description | Type | Size of flush mounted panel(mm) | Size of flush mounted box, size of suspension mounted type (mm) | |||
| H | W | H1 | W1 | D | |||
| 1 | 4 circuits mounted units | PZ30-4A/M | 170 | 175 | 150 | 145 | 90 |
| 2 | 6 circuits mounted units | PZ30-6A/M | 225 | 210 | 185 | 200 | 90 |
| 3 | 8 circuits mounted units | PZ30-8A/M | 225 | 245 | 220 | 200 | 90 |
| 4 | 10 circuits mounted units | PZ30-10A/M | 285 | 285 | 260 | 260 | 90 |
| 5 | 12 circuits mounted units | PZ30-12A/M | 285 | 320 | 295 | 260 | 90 |
| 6 | 15 circuits mounted units | PZ30-15A/M | 285 | 375 | 350 | 260 | 90 |
| 7 | 18 circuits mounted units | PZ30-18A/M | 285 | 425 | 400 | 260 | 90 |
| 8 | Single-row 20 circuits mounted units | PZ30-20A/M | 285 | 465 | 440 | 260 | 90 |
| 9 | Double-row 20 circuits mounted units | PZ30-20A/M | 485 | 285 | 260 | 460 | 90 |
| 10 | Double-row 24 circuits mounted units | PZ30-24A/M | 485 | 320 | 295 | 460 | 90 |
| 11 | Double-row 30 circuits mounted units | PZ30-30A/M | 485 | 375 | 350 | 460 | 90 |
| 12 | Double-row 36 circuits mounted units | PZ30-36A/M | 485 | 425 | 400 | 460 | 90 |
| 13 | row 45 circuits mounted units | PZ30-45A/M | 690 | 375 | 350 | 665 | 90 |
