Basic Info.
Model NO.
RDCPS1
HS Code
8536300000
Production Capacity
5000PCS/Month
Product Description

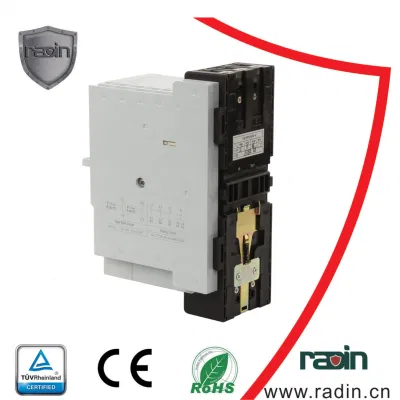

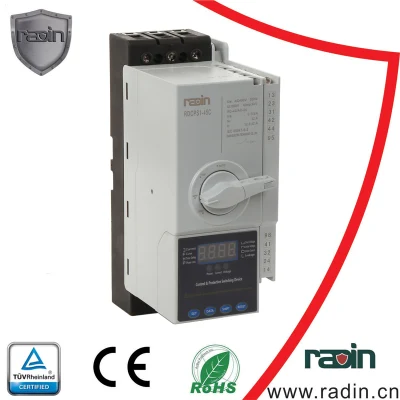

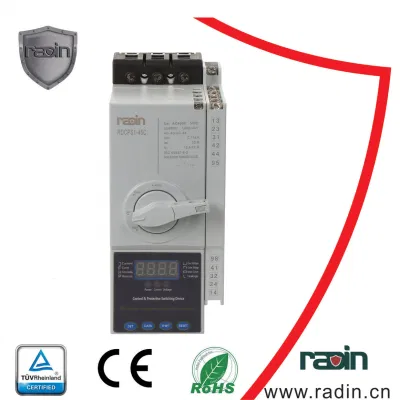

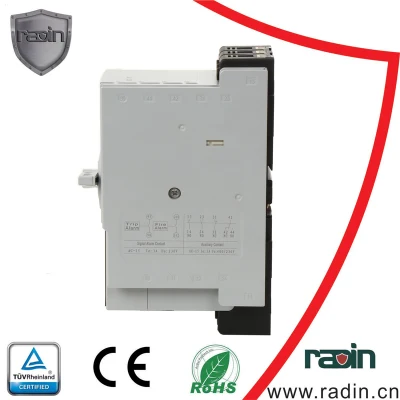

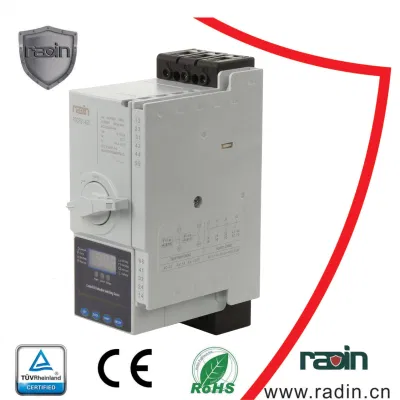

Soft Starter Motor Control Relay & Isolator Switch KB0(RDCPS1)
RDCPS1 Series
Motor control and protection device
Integrated functions of MPCB, contactor, relay, motor protector etc.
Smaller size, width is less 13mm compare to others;
High short circuit breaking capacity, arc distance 20-30mm;
Controller adopt digital processing technology with high measuring accuracy;
According to the circuit data automatically adjust the current setting, with recovery function;
Optional Rs485, Rj45, Modbus function;
Frame current: 45A, 125A
Main technical datas (main circuits)
Dlivery Terms
Shipment & Express & Air express
Packing
About the Company
RADIN parts are CE, TUV, CCC certified and the fatory is ISO9001:2015 approved.
FAQ:
1. What's the warranty term?
24 Monthes.
2. How long does it take to deliver my goods?
Normally, samples can be delivered in 2 days. Customer designed sampleswill be delivered in 3-7 days.
3. Do you offer sample?
Yes, we offer sample order for customer to test the goods.
4. What kinds of payment terms do you accept?
We offer kinds of payment ways foe customer to chose from. T/T, L/C, Western union etc.
5. What if there's quality peoblem?
We offer replacement for the goods as soon as there is a quality problem with the goods, and the fright is on our account to cut down the customer's loss to the lowest.
We are sure any of your questions will get our prompt reply, just leave the message!
RDCPS1 Series
Motor control and protection device
Integrated functions of MPCB, contactor, relay, motor protector etc.
Smaller size, width is less 13mm compare to others;
High short circuit breaking capacity, arc distance 20-30mm;
Controller adopt digital processing technology with high measuring accuracy;
According to the circuit data automatically adjust the current setting, with recovery function;
Optional Rs485, Rj45, Modbus function;
Frame current: 45A, 125A
Main technical datas (main circuits)
| Basic data of main circuit | |||||||||||||
| Model | RDCPS1-45 | RDCPS1-125 | |||||||||||
| Rated working voltage Ue | 400VAC/690VAC(220VAC custom design) | ||||||||||||
| Rated isolation voltage Ui | 690V | 690V | |||||||||||
| Rated withstand voltage Uimp | 4kV | 6kV | |||||||||||
| Conventional thermal current Ith(A) | 16 | 45 | 80 | 125 | |||||||||
| Rated working current Ie(A) | 1 | 3 | 6 | 12 | 16 | 25 | 32 | 45 | 63 | 80 | 100 | 125 | |
| Use catagory | AC-43, AC-44 | ||||||||||||
| Pole | 3 Poles | ||||||||||||
| Main data of main circuit | ||||||
| Frame Current Inm | Rated working current of controller Ie(A) | Long time delay current setting range Ir1(A) | Short time delay current setting range Ir2(A) | 220V control power range (kW) | 380V control power range (kW) | |
| 45 | 1 | 0.4-1 | 1.2-12 | 0.06-0.18 | 0.12-0.33 | |
| 3 | 1.2-3 | 3.6-36 | 0.2-0.7 | 0.55-1.2 | ||
| 6 | 2.4-6 | 7.2-72 | 0.5-1.5 | 1-2.5 | ||
| 12 | 4.8-10 | 12-120 | 1.1-3 | 1.6-4 | ||
| 16 | 6.4-16 | 19.2-192 | 1.5-4 | 2.5-7.5 | ||
| 25 | 10-25 | 30-300 | 2.5-7 | 5.0-12 | ||
| 32 | 12.8-32 | 38.4-384 | 3.5-8 | 6.5-15 | ||
| 45 | 18-45 | 54-540 | 4.5-13 | 9-22 | ||
| 125 | 63 | 25.2-63 | 75.6-756 | 7-19 | 12-30 | |
| 80 | 40-80 | 120-960 | 8-25 | 22-37 | ||
| 100 | 50-100 | 150-1200 | 11-32 | 27-45 | ||
| 125 | 63-125 | 189-1500 | 15-40 | 35-55 | ||
Dlivery Terms
Shipment & Express & Air express
Packing
About the Company
RADIN parts are CE, TUV, CCC certified and the fatory is ISO9001:2015 approved.
FAQ:
1. What's the warranty term?
24 Monthes.
2. How long does it take to deliver my goods?
Normally, samples can be delivered in 2 days. Customer designed sampleswill be delivered in 3-7 days.
3. Do you offer sample?
Yes, we offer sample order for customer to test the goods.
4. What kinds of payment terms do you accept?
We offer kinds of payment ways foe customer to chose from. T/T, L/C, Western union etc.
5. What if there's quality peoblem?
We offer replacement for the goods as soon as there is a quality problem with the goods, and the fright is on our account to cut down the customer's loss to the lowest.
We are sure any of your questions will get our prompt reply, just leave the message!
