Basic Info.
Installation
Wall or Pole
Color
White
Lead Time
2-5 Working Days
Warranty
1 Year
Shipping
by Sea, by Air or by Express Delivery (DHL/UPS/Tn
Core Quantity
16
Fiber Diameter
0.9mm/2.0mm/3.0mm
Ferrule Endface
PC, Upc, APC
Transmission Medium
Sm mm
PLC Type
Mini or Cassette
Application
Indoor and Outdoor
Core
2 4 8 12 16 32 48 64 Cores
Material
PC ABS SMC
Transport Package
Carton Package
Specification
210*175*45 mm
Trademark
OEM
Origin
China
HS Code
8517709000
Production Capacity
50000piece/Month

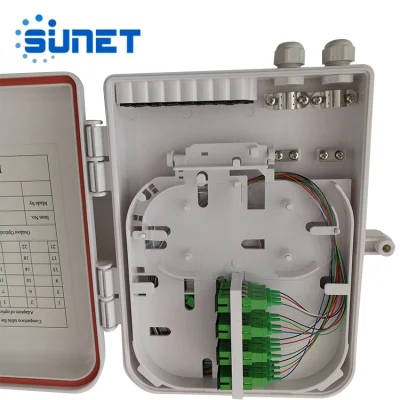

Product Description
1. Description:
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.
The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for
the FTTx network building.

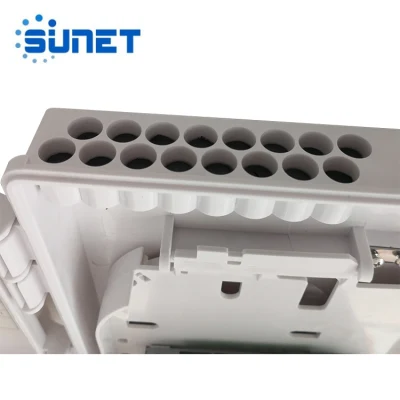

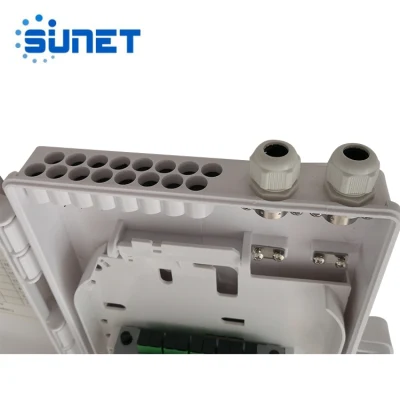

2. Features:
1.Total enclosed structure.
2. Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging,protection level up to IP65.
3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
4. Cable,pigtails,patch cords are running through own path without disturbing each other,cassette type SC adaptor installation,
easy maintenance.
5. Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
6. Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
Configuration
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.
The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for
the FTTx network building.
2. Features:
1.Total enclosed structure.
2. Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging,protection level up to IP65.
3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
4. Cable,pigtails,patch cords are running through own path without disturbing each other,cassette type SC adaptor installation,
easy maintenance.
5. Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
6. Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
3.Specification:
1.Environmental requirement
Working temperature:-40ºC~+60ºC
Relative humidity:≤85%(+30ºC)
Atmospheric pressure:70KPa~106Kpa
2.Main technical datasheet
Insertion loss:≤0.2dB
UPC return loss:≥50dB
APC return loss:≥60dB
Life of insertion and extraction:>1000 times
3. Thunder-proof technical datasheet
The grounding device is isolated with the cabinet, isolation resistance is less than 2MΩ/500V(DC);IR≥2MΩ/500V
The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flash over;U≥3000V
4. Configuration table:
1.Environmental requirement
Working temperature:-40ºC~+60ºC
Relative humidity:≤85%(+30ºC)
Atmospheric pressure:70KPa~106Kpa
2.Main technical datasheet
Insertion loss:≤0.2dB
UPC return loss:≥50dB
APC return loss:≥60dB
Life of insertion and extraction:>1000 times
3. Thunder-proof technical datasheet
The grounding device is isolated with the cabinet, isolation resistance is less than 2MΩ/500V(DC);IR≥2MΩ/500V
The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flash over;U≥3000V
4. Configuration table:
Configuration

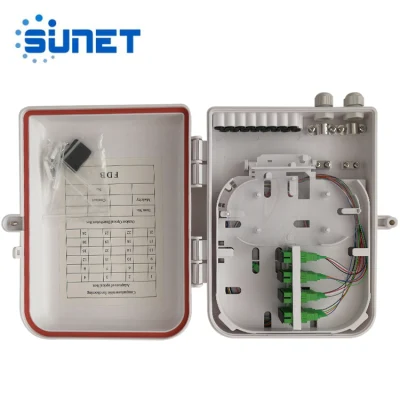

| Material | Size(Pic 1) | Max Capacity | Weight | |
| | AxBxC(mm) | adapter SC | PLC | (kg) |
| PC+ABS | 295*220*85 | 16 | 1/8*2(SC) | 1.57 |
