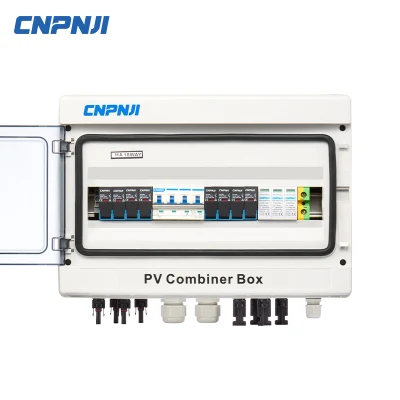

Solar Panel DC Solar Combiner Box 1-32 Strings PV Combiner Box

Shop our Solar Panel DC Solar Combiner Box 1-32 Strings PV Combiner Box. We are a factory offering high-quality solar combiner boxes for your energy needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Features
  • Recommend Products
  • Product Description
  • Hot products
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
distribution box
Form
All- packaged Type
Operation Voltage
High Voltage
Size
1 Uint
Application Range
Power Plants
Shell Material
Plastic ABS
Shell Protection Grade
IP65
Brand
Miongguan
Name
PV Combiner Box
Input Current of Each Circuit
20A
Maximum Output Switching Current
40A
Strings
2
Voltage
1000V
Transport Package
Paper /Wooden Carton
Specification
300*260*140mm
Trademark
MIONGGUAN
Origin
China
HS Code
8537109090
Production Capacity
500PCS/Month

Packaging & Delivery

Package Size
50.00cm * 38.00cm * 17.00cm
Package Gross Weight
6.500kg

Product Description



Product Features


The combiner box can be divided into three types in terms of function. The first type is the basic type, without anti backflow and monitoring functions; The second type is equipped with anti reverse function and does not have monitoring function; The third type, which has both anti anti anti anti backflow and monitoring functions, is the most versatile, cost-effective and cost-effective combiner box.

Name of combiner box components and their main impacts:
1. Circuit breaker and isolation switch: used for isolation; Easy to cut off power for maintenance on the load side
2. Photovoltaic fuse: prevents the line from withstanding excessive current or short-circuit current, and protects photovoltaic modules
3. DC Surge protector: to prevent inductive lightning stroke
4. Anti reverse current diode: To prevent reverse power transmission from high voltage string to low voltage string, but it will cause power loss and require additional heat dissipation devices
5. Monitoring unit (intelligent controller): monitoring current, Surge protector status, etc. to realize data communication
6. Voltage transmitter and self powered power supply: providing working power to the intelligent controller


Recommend Products

Solar Panel DC Solar Combiner Box 1-32 Strings PV Combiner Box
Solar Panel DC Solar Combiner Box 1-32 Strings PV Combiner Box
Solar Panel DC Solar Combiner Box 1-32 Strings PV Combiner Box
Solar Panel DC Solar Combiner Box 1-32 Strings PV Combiner Box
Solar Panel DC Solar Combiner Box 1-32 Strings PV Combiner Box
Solar Panel DC Solar Combiner Box 1-32 Strings PV Combiner Box



Product Description

Solar Panel DC Solar Combiner Box 1-32 Strings PV Combiner BoxSolar Panel DC Solar Combiner Box 1-32 Strings PV Combiner Box

Name
PV combiner box
System maximum de voltage
1000
Maximum input current for each string
20A
Maximum input strings
2
44Maximum outpui switch current
40A
Number of invener MPPT
1
Number of Outpui strings
1
Category of test
II grade protection
Nominal discharge current
20kA
Maximum discharge current
40kA
Voltage protection level
3.8kV
Maximum continuous operating voltage Uc
1000V
Poles
3P
Structure characteristic
Plug-push module
Operating Temperalure
Wall mourning type
Installation method
Wall mourning type

Solar Panel DC Solar Combiner Box 1-32 Strings PV Combiner Box Solar Panel DC Solar Combiner Box 1-32 Strings PV Combiner Box Solar Panel DC Solar Combiner Box 1-32 Strings PV Combiner Box
Solar Panel DC Solar Combiner Box 1-32 Strings PV Combiner Box
Hot products



Solar Panel DC Solar Combiner Box 1-32 Strings PV Combiner Box Solar Panel DC Solar Combiner Box 1-32 Strings PV Combiner Box
Company Profile



Solar Panel DC Solar Combiner Box 1-32 Strings PV Combiner Box
Solar Panel DC Solar Combiner Box 1-32 Strings PV Combiner Box
Solar Panel DC Solar Combiner Box 1-32 Strings PV Combiner Box
FAQ

Q1:.What is working time?
A:08:30-17:00 (GMT+8 Beijing), from Monday to Saturday.
24 Hours customerservice
For any query or problem , please contact us :



Q2: Will my drawing be safe after you get it?
A:Yes, we will not release your design to third party unless with your permission. And we
can sign the NDA before you send the drawing.


Q3: What is the MOQ?
A: Usually we don't set MOQ, but the more, the cheaper. Besides, we are happy to make
prototype or sample for clients to ensure
quality standard.

Q4:Whether some samples can be provided?
A: Yes, We can supply the sample if we have ready parts in stock, but the customers have
to pay the sample cost and the courier cost.


Q5: What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products
and packages before you pay the balance.


Q6: How about your delivery time?
A: Generally, it will take 5-7 days after receiving your advance payment. The specific delivery
time depends on the items and the quantity of your order
