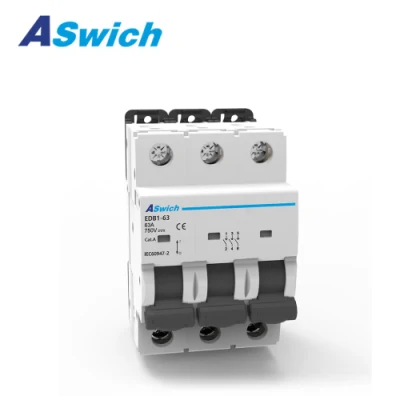

Special High Voltage Solar Photovoltaic 2p 63A DC Circuit Breaker MCB DC Protection

Shop our high voltage solar photovoltaic circuit breaker for DC protection. Our factory produces top-quality 2p 63A MCBs for PV systems. Order now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
EDB1-63
Poles Number
1p/2p/3p/4p
Type
Circuit Breaker
Function
Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection, OVP(Overvoltage Protection)
Certification
ISO9001-2000, CE, CB, CCC, SAA
Voltage Ui
1000V
Imp
6ka/10ka
Rated Current
63A
Tripping Curve
B/C
Enclosure Box
with/Without
Transport Package
by Sea/Air
Specification
box
Trademark
Aswich
Origin
China
HS Code
853650
Production Capacity
1000000PC/Year

Product Description

Parameter Description Unit Value
Rated Voltage V 250V/500V/750V/1000V;                 100V 200V
Rated current A 6,10,16,20,32,40, 63;              63, 80, 100, 125, 250
Power        frequency        withstand
Voltage
kVrms 4
Impulse withstand Voltage kVpk 6/10
Tripping Characteristic type   Type B Type C
Instantaneous Tripping range
according to IEC/EN 60898-1
  3-5x 1 3-10x
Rated breaking capacity kA 6/10 6/10
Energy Limitation Class   3 3
Mounting   DIN rail (DIN EN50052)
Mechanical Endurance cycles 20,000
Electrical Endurance cycles 10,000
Conductor Size mm2 Up to 25
Degree of protection IP 55

 tests in accordance with IEC 60898-1:
  1. Indelibility of Marking
    1. Resistance to heat
    2. Resistance to abnormal heat and to fire
    3. Resistance to rusting.
    4. Resistance to Mechanical shock and Impact
    5. Short-Circuit
    6. Mechanical and Electrical endurance
    7. Tripping Characteristic
    8. Temperature rise
    9. Dielectric Properties
    10. Protection against electric shock
    11. Reliability of terminals for external conductors
    12. Reliability of Screws, Current carrying parts and connections

ASWICH circuit breaker is used for DC rated voltage to 1000V, rated current to 63A line, for overload and short circuit  protection,  and  can  also  be  used  as  an  infrequent  operation  of  the  line.Circuit  breakers  are  used  in  DC applications such as communications and photovoltaic system.

In complicance with IEC/EN606947-2
It has protective function as shortage as overload, and areused in lighting distribution system in commerce and dwelling, andprotect fractional electric motors. And they also have many meritsof high protective grade(up to IP20), high breaking capacity, reliablesensitive action, convenient, multi pole assembling, long life ect.They are mainly adapted to the circuit of AC 50Hz, 250V in singlepole, 415V in double, three, four poles for protecting overload andshort circuit. Mean while, they are also used in turning on or off theelectric apparatus and lighting circuit under the normal conditions.
