Basic Info.
Model NO.
Okey-am-0523-32
Base Material
Aluminum
Insulation Materials
Organic Resin
Model
PCB
Brand
Okey
Color
Green, Blue, Black, Red, Yellow etc.
Certificate
ISO UL RoHS and Reach
Surface Finish
HASL
Transport Package
Inner Vacuum Packing Outer Carton Box
Specification
UL, Rohs, ISO9001: 2008
Trademark
OKEY
Origin
Shenzhen, Guangdong, China
HS Code
8534009000
Production Capacity
Output 10 000 Square Meter Per Month
Product Description




Technical Capabilities | |||
Items | Speci. | Remark | |
Max panel size | 32" x 20.5"(800mm x 520mm) | ||
Max. Board size | 2000×610mm | ||
Min. board Thickness | 2-layer 0.15mm | ||
4-layer 0.4mm | |||
6-layer 0.6mm | |||
8-layer 1.5mm | |||
10-layer 1.6~2.0mm | |||
Min. line Width/Space | 0.1mm(4mil) | ||
Max. Copper thickness | 10OZ | ||
Min. S/M Pitch | 0.1mm(4mil) | ||
Min. hole size | 0.2mm(8mil) | ||
Hole dia. Tolerance (PTH) | ±0.05mm(2mil) | ||
Hole dia. Tolerance | ,+0/-0.05mm(2mil) | ||
Hole position deviation | ±0.05mm(2mil) | ||
Outline tolerance | ±0.10mm(4mil) | ||
Twist & Bent | 0.75% | ||
Insulation Resistance | >10 12 Ω Normal | ||
Electric strength | >1.3kv/mm | ||
S/M abrasion | >6H | ||
Thermal stress | 288°C 10Sec | ||
Test Voltage | 50-300V | ||
Min. blind/buried via | 0.15mm (6mil) | ||
Surface Finished | HASL, ENIG, ImAg, Imsn OSP, Plating AG, Plating gold | ||
Materials | FR4,H- TG,Rogers,Ceramics,Aluminium, Copper base | ||
Min trace width/ space (inner layer) | 4mil/4mil(0.1mm/0.1mm) | ||
Min PAD (inner layer) | 5 mil(0.13mm) | hole ring width | |
Min thickness(inner layer) | 4 mil(0.1mm) | without copper | |
Inner copper thickness | 1~4 oz | ||
Outer copper thickness | 0.5~6 oz | ||
Finished board thickness | 0.4-3.2 mm | ||
Board thickness tolerance control | ±0.10 mm | ±0.10 mm | 1~4 L |
±10% | ±10% | 6~8 L | |
±10% | ±10% | ≥10 L | |
Inner layer treatment | brown oxidation | ||
Layer count Capability | 1-30 LAYER | ||
alignment between ML | ±2mil | ||
Min drilling | 0.15 mm | ||
Min finished hole | 0.1 mm |






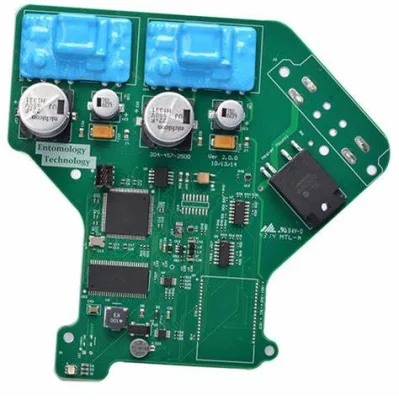

Pcb circuit board with double sided soldermask:
Top quality bare pcb with cheapest price made in China
1. PCB layer: 1-12 layers
2. PCB Certificate: ISO UL REACH and RoHS
3. FR-4 Material
4. Best price with excellent after-service
5. Reputable manufacturer
Hello, are you still looking for some manufactory to test your PCB circuit design?
We offer 3-6 workdays delivery time for make protoypes.
1. We have 10 years experience in circuit board, Printed Circuit Board field to serve your needs.
2. Competitive circuit board, Printed Circuit Board price with high quality.
3. Excellent service and prompt delivery
4. Our circuit board, Printed Circuit Board get ISO and UL Certificates and meet RoHS REACH standard
5. You can contact us at any time, we are 24-hour service for you!

NO | Item | Technical capabilities |
1 | Layers | 1-12 layers |
2 | Max. Board size | 2000×610mm |
3 | Min. board Thickness | 2-layer 0.25mm |
4-layer 0.6mm | ||
6-layer 0.8mm | ||
8-layer 1.5mm | ||
10-layer 1.6~2.0mm | ||
4 | Min. line Width/Space | 0.15mm(4-5mil) |
5 | Max. Copper thickness | 10OZ |
6 | Min. S/M Pitch | 0.15mm(4-5mil) |
7 | Min. hole size | 0.2mm(8mil) |
8 | Hole dia. Tolerance (PTH) | ±0.05mm(2mil) |
9 | Hole dia. Tolerance (NPTH) | +0/-0.05mm(2mil) |
10 | Hole position deviation | ±0.05mm(2mil) |
11 | Outline tolerance | ±0.10mm(4mil) |
12 | Twist & Bent | 0.75% |
13 | Insulation Resistance | >10 12 Ω Normal |
14 | Electric strength | >1.3kv/mm |
15 | S/M abrasion | >6H |
16 | Thermal stress | 288°C10Sec |
17 | Test Voltage | 50-300V |
18 | Min. blind/buried via | 0.2mm (8mil) |
19 | Surface Finished | HAL, ENIG, ImAg, Imsn OSP, Plating AG, Plating gold |
20 | Materials | FR4,H-TG,Rogers,Ceramics,Aluminium, Copper base |








FAQ
Q1:What kind of PCB file format can you accept for production?
Gerber, PROTEL 99SE, PROTEL DXP, CAM350, ODB+(.TGZ)
Q2:Is my PCB files safe when I submit them to you for manufacturing?
We respect customer's copyright and will never manufacture PCB for someone else with your files unless we receive written permission from you, nor we'll share these files with any other 3rd parties.NDA agreement is workable.
Q3: Can you also handle PCB Assembly?
We have our own PCB assembly factory which can help to source all the components for your product according to your BOM .
Q4: Can you provide ODM and OEM service?
We have experienced R&D team which can do research and design as your requests. Also we good at do reverse engineering .
Q5:What payments do you accept ?
-Wire Transfer(T/T),Western Union,Letter of Credit(L/C),Paypal ,Ali Pay,Credit Cart
Q6:How to ship the goods?
A:For small packages, we will ship the boards to you by DHL,UPS,FedEx,EMS. Door to door service! You will get your PCBs at your home.
B:For heavy goods more than 300kg, we may ship your boards by ship or by air to save freight cost. Of course, if you have your own forwarder,we may contact them for dealing with your shipment.
Q7:What is your minimum order quantity?
No MOQ limitation
Q8: Can we visit your company?
No problem. You are welcome to visit us in Shenzhen. Or the other factory is in GuangDong province.
Q9: How can you ensure the quality of the PCBs?
Our PCBs and PCBA productions are 100% test including Flying Probe Test, E-test and AOI and functional test.
