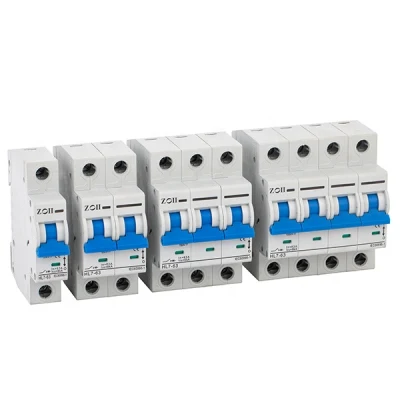

Basic Info.
Model NO.
DZ47-63
Poles Number
1
Type
Circuit Breaker
Function
Conventional Circuit Breaker
Certification
ISO9001-2000, CE, CB, CCC
Voltage
DC 250V,500V,750V,1000V
Ambient Temperature
-5ºC~+40ºC
Relative Humidity
Less Than 50% Under +40ºC
Mechanical Life
No Less Than 20000 Operations
Number of Poles
1p, 2p, 3p, 4p
Frequency(Hz)
50/60
Altitude
Below 2000 Meter
Electrical Life
No Less Than 6000 Operations
Rated Current in(a)
1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63, 80,
Trademark
ZOII
Origin
Zhejiang Province, China
HS Code
8536200000
Production Capacity
500000/Month
Product Description
Specification
| item | value |
| Place of Origin | China |
| | Zhejiang |
| Brand Name | ZOII |
| Model Number | |
| Breaking Capacity | |
| Rated Voltage | 500V |
| Rated Current | 6000A |
| BCD Curve | C |
| Type | MCB, RCCB, RCBO, Other |
| Rated Frequency (Hz) | 50/60hz |
| Number of Pole | 2 |
| Protection | Other |
| Model | DZ47 |
| Pole | 1P, 2P, 3P, 4P |
| Rated current | 1/2/3/4/6/8/10/16/20/25/32/40/50/63a |
| Rated Operating Voltage | 12V-1200V DC |
| Rated Current In | 1A-63A |
| Curve Type | C |
| Mechanical life (times) | 20000 |
| Electrical life (times) | 10000 |
| Maximum wiring capacity | 25mm² |
| Certificate | CE |
Product Description
Company Profile
Certifications
1.Experienced: our team has 13 years of experience
2.Factory: Mature technics, strict attitude and perfect quality system
3.Before leaving the factory sampling of products for lightning test, strict quality control
4.Quality Assurance: Don't let the quality problems do damage to our brand
5.Strict quality control, full-inspection. Professionally dedicated to SPD production
Company Profile
Certifications
Feature
The handle being sealable or equipped with padlock bracket avoids dangerous operation changes (ON / OFF)
Clear indication of the contact position
Energy limiting class: 3
The emission of ionized gases is limited to the severest restrictions: 45 mm grid distance
Suitable for household or similar applications in accordance with:
IEC 60898-1, tripping characteristics B, C and D.
