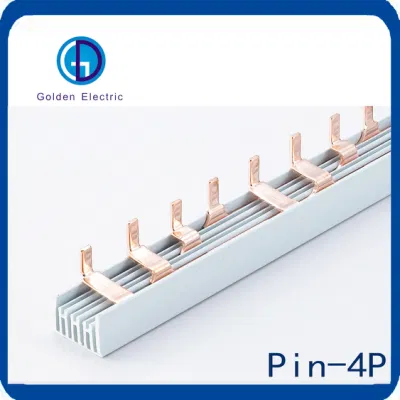

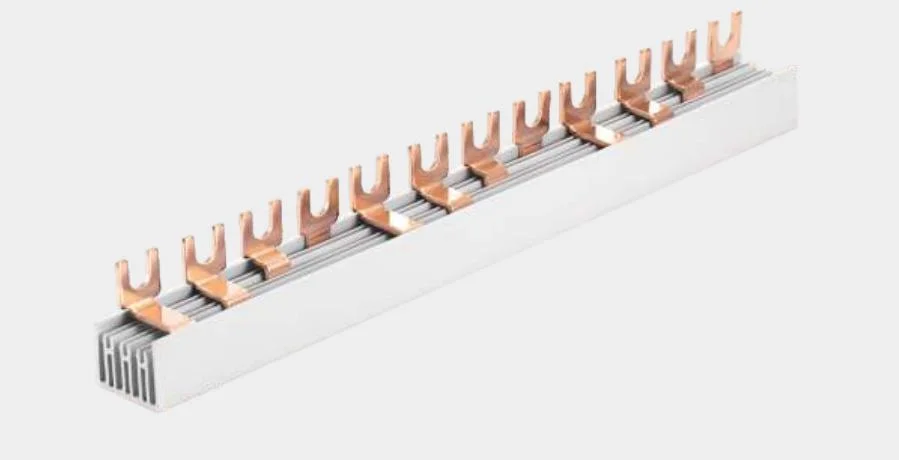

Terminal Block Connector Copper Busbar with U or Fork Type for MCB

Terminal Block Connector Pure Copper Busbar is used for kinds of circuit breaker, copper busbar ease wiring electrical item,enlarge area, decrease temperature rise and thus increase the electric reliability of electrical items.

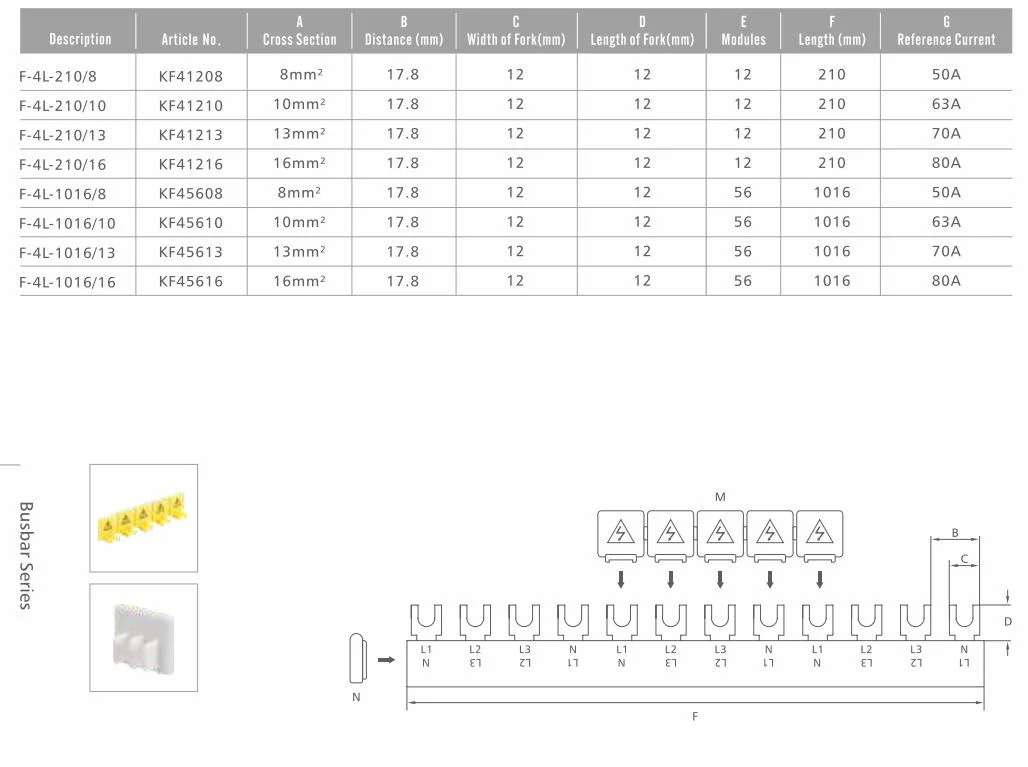

Fork Type 4-Phase busbar(M6)

Technical features of  copper busbar :
1.  Material is of fire-resistant PVC and redl copper
2.  Current rating is up to 100A
3.  Rated voltage is up to 415V
4.  Applicable ambient temperature -25~+50
5.  Standard length 1m, other length tol be made upon request.
6.  Good conductivity, low contact resistance, safe and reliable.

customized busbar
End caps

Package:International standard packaging

Transport method : support multiple modes of such as sea, land and air

Buyer: If we need some sample, whether you can supply?
Seller: Yes, we can.

Buyer: Our current is 63A, is ok?
Seller: Our max current is 125A. the current is less than 125A, is ok.

Buyer: Can we use our LOGO?
Seller: Yes, we can use your LOGO and company information

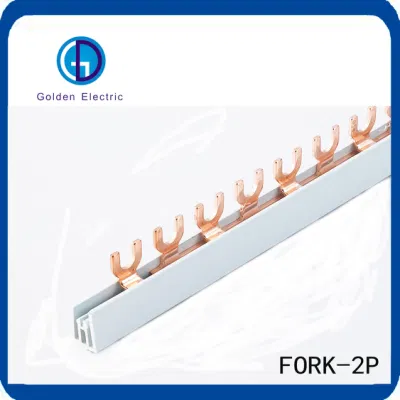

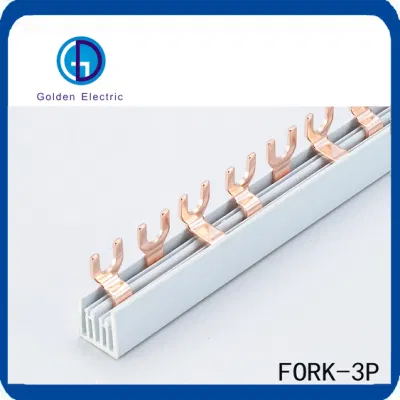

Buyer: Fork type copper busbar is U type copper busbar?
Seller: Yes. it's the same. You can choose fork type copper busbar according to your requirements.
