PRODUCTS DETAILS

Basic Info.

Model NO.
TLS-4WAY Square D
Theory
Machine-electric Type
Power Meter Connection
Terminal
Measured Signal
Pulse Peak
Type
Energy Meter
Certification
RoHS, ISO, CE
Customized
Customized
Standard
ANSI 12.7
Application
Plug in Circuit Breaker
Waterproof Level
NEMA 3r
Protection Level
IP54
Material
0.8-1.5mm Electro-Galvanized Steel Sheet
Rated Voltage
120/240V
Rated Current
125A
Useing Range
Single Phase 3 Wire
Rated Phase
Dpn
Breaker
Thql
Mounted
Flush
Transport Package
Wooden Package
Specification
CE ROHS
Trademark
OEM
Origin
Zhejiang Yueqing
HS Code
9028901100
Production Capacity
100000PCS/ Month

Product Description

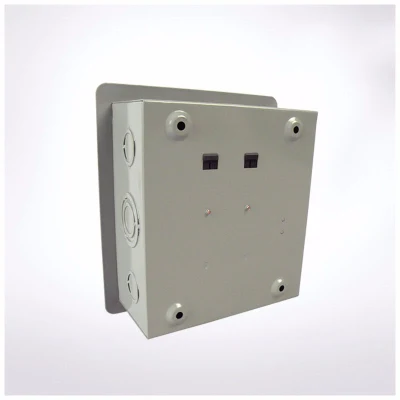

TLS-4WAY SquareD 125A Flush  Panelboard  Recessed Load Center for plug in circuit breaker

series Load Center have been designed for safe ,reliable distribution and control of electrical power as service entrance equipment in residential,commerical and light industrial premises.They are available in plug-in designs for indoor application.

Features:

  • Made out of high quality steel sheet of up to 0.8-1.2mm thickness .
  • Matt-Finish polyeter power coated paint.
  • Knockouts provided on all sides of the enclosure.
  • Accept Square D type plug-in circuit breaker
  • Suitable for AC 60HZ, rated voltage to 240V,rated current to 125A.
  • Wider enclosure offers ease or wiring and move heat dissipation.
  • Flush and Surface mount designs.
  • Knockouts for cable entry are orovided on top .Bottom of the enclosure .

Specification:



Product Number Front Type Rated Current(A) Rated Voltage(V) No.of Way Rated Phase
TL-SD-1-S Surface 50 120 1 Single
TL-SD-1-F Flush 50 120 1 Single
TL-SD-2-S Surface 50 120/240V 2 Single
TL-SD-2-F Flush 50 120/240V 2 Single
TL-SD-4-S Surface 100 120/240V 4 Single
TL-SD-4-F Flush 100 120/240V 4 Single
TL-SD-6-S Surface 60 120/240V 6 Single
TL-SD-6-F Flush 60 120/240V 6 Single
TL-SD-8-S Surface 100 120/240V 8 Single
TL-SD-8-F Flush 100 120/240V 8 Single
