Basic Info.
Model NO.
RB21
Shell Material
PC
Shell Protection Grade
IP54
Brand
See
Light
LED Bulb / E27
Temperature
-30ºC-60ºC
Transport Package
Carton
Specification
L359mm*W196mm*H102.5mm
Trademark
SEE
Origin
Jiangsu, China
Production Capacity
1000000pieces/Year
Product Description
Ready Board

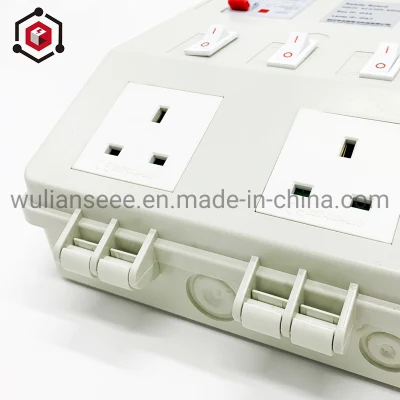

SEE-RB21 Small Power Distribution Unit(SPDU)
Brief Introduction
SEE-RB21 is a portable, safe, economic and easy to use pre wired low voltage ready board with 2(Two) sockets,1(One) lighting lamp and protection area. It has 4(Four) mounting lugs suitable for wall installation and additional knockout for future use. It is suitable for residential (small holding, extension, garages, outbuildings), commercial and industrial purpose.
Specification
Components
Installation Method & Accessories
Factory Show
More Product
SEE-RB21 Small Power Distribution Unit(SPDU)
Brief Introduction
SEE-RB21 is a portable, safe, economic and easy to use pre wired low voltage ready board with 2(Two) sockets,1(One) lighting lamp and protection area. It has 4(Four) mounting lugs suitable for wall installation and additional knockout for future use. It is suitable for residential (small holding, extension, garages, outbuildings), commercial and industrial purpose.
Specification
| Items | Paremeters |
| Dimension | L359*W196*H102.5mm |
| Power Input | AC 230V |
| Socket Type | British Type /Type G |
| Max Power Output | 13A |
| Lamp Holder | Screw Type E27 |
| RCBO | 1 PCS 1P+N 32A/10A/5A |
| Material of Ready Board | Injection Molded Plastic |
| Type of Mounting | Wall Mounting / Pole Mounting |
| No. of Access Points for Conduit or Each Cable | 9 at Side |
| Protection Class | Light Chamber IP67 |
| Temperature | -30ºC to 60ºC |
| Color | Grey |
