Basic Info.
Model NO.
WF1027u
Poles Number
1
Type
Circuit Breaker
Function
Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection, OVP(Overvoltage Protection), RCCB
Certification
ISO9001-2000, CE, CB, CCC
Transport Package
Standard Export Packing
Specification
25KV
Trademark
QUANGUAN
Origin
Zhejiang
Production Capacity
50000PCS/Month
Product Description

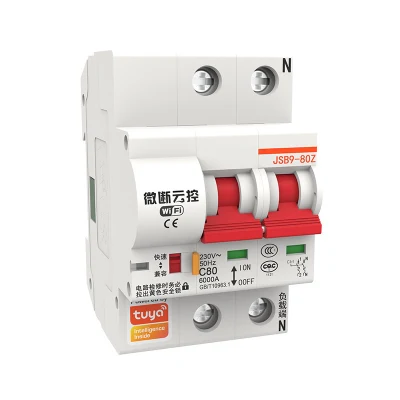

WiFi Intelligent Circuit Breaker is suitable for AC 50/60Hz, rated voltage 230V/400V, rated current to 125A line for protection against overload, short circuit and isolation; also as a smart reclosing breaker, also has a function of mobile phone worldwide remote control on/off circuit, timing on/off circuit, delay on/off circuit, cycle on/off circuit.
Technical Parameters
Technical Parameters
| Standards Compliant | GB10963.1;IEC60898-1 |
| Rated Voltage | AC 230V 1P/2P, AC 400V 3P/4P |
| Frequency | 50/60Hz |
| Number of poles | 1P 2P 3P 4P |
| Pollution Level | II |
| Protection Level | IP20 |
| Installation Category | II III |
| Specified Use Temperature | -25ºC ~ + 65ºC |
| Rack Rated Current | 125A |
| Rated Current | 32A, 40A, 63A, 80A, 100A, 125A |
| Instantaneous Trip Type | C |
| Rated Short-circuit Breaking Capacity | 10KA |
| Rated Impulse Withstand Voltage | 6KV |
| Mechanical life | > 10,000times |
| Electrical life | > 6,000times |
