Basic Info.
Model NO.
HiXT-BX012
Application Range
High-rise Buildings
Shell Material
SMC
Shell Protection Grade
IP44
Brand
Hifuture
Installation Type
Wall-Hung Type
Material
SMC
Phase
Single Phase
Unit
One Unit
Transport Package
1PCS/Carton
Specification
ISO9001; 2000, KEMA, CCC,
Trademark
HiFuture
Origin
Shenzhen, China
HS Code
8538900000
Production Capacity
50000PCS/Year
Product Description
Waterproof SMC electrical singel phase meter box
Product overview:
1. Setting opearation window is available for end user, management control classified.

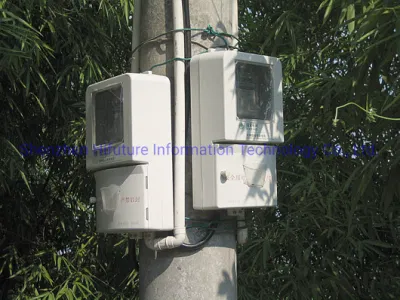

2. Optional installation as well, pole and embeding mounting.
3. Inner built-in lock is free from mechanical force and atrocious dinate.
4. Mutil-optional combined mounting solutions, avaiable for main ciruit inlet control cabinet for convenience
metering management.
The Parameter of the Material Ability:
| Index name | Unit | Index data | Test standard |
| Density | g/ cm³ | 1.75-1.95 | GB/T1033 |
| Hydroscopic property | mg | <20 | JB 3961-1 |
| Heat deflection temperature | ºC | 200-240 | JB 3961-A |
| Simple Beam impulse strength | KJ/ | 60-90 | GB 1043 |
| Bending intensity | Mpa | 150-180 | JB 3961-1 |
| Insulation resistance(normal) | Ω | ≥1.0x10 ¹³ | GB 10064 |
| Insulated resistance(immersed for 24hs) | Ω | ≥1.0x10 ¹² | GB 10064 |
| Flam retardant | Grade | FV0 | GB11020 |
| Gas toxicity | Grade | ZA | GA 132-1996 |
| Smoke density | Grade | 15 | GB/T 8627-1999 |
SMC Cabinet Introduction:
1. Adopting SMC material, moulding under the high temperature and pressure, the sheet has high intension,
high modulus and excellent anti-collision.
2. SMA Cabinet is lighter 1/3 than metal is of the same size, thus much metal source could be saved.
3. Excellent electric insulativity, ensuring applicating secure use for indoor and outdoor.
4. Anti-corrosion and aging, no decay and corrosion, available for rainy and moist costal area and chemical industry,
power station and so on, over 20 years working lifetime.
5. Special exterior design and the surface disposal results in the cabinet nice looking with no light pollution
and anti poster.
6. Combined mounting cabinet with convenient installation, the flexible combination can suit for many
space requirement. Protection class is from IP33 to IP65.
7. Special structure design and venting disposition can reduce the phenomenon of dew and frost inside box.
The material traits:
1. Excellent insulatibity
SMC has high insulation resistance and AC dielectric intension, nice dielectric ability under high AC,
no reflection, no block of microwave radiation.
2. Chemical corrosion resisting and environment aging
Resisting corrosion of low concentration acid, alkali, salt, resisting many kind of oils and organic solvent,
sea water and so on, and resisting ultraviolet radiation and environment aging.
3. Out temperature resistance
Heat deflection temperature over 200ºC, and low temperature resistant. The material can keep excellent
mechanical features in a wide range range of temperature(40ºC-160ºC).
4. Excellent anti-collision
Three dimensional net structure inside the material and the increasing fuction of the longer fiber, resulting in
excellent collision resistance and insentive to the gap, and excellent machining ability (drilling and cutting).
5. Flam retardaw and smoke density
Flam retardaw: FV0. Smokedensity class: 15. The gas toxicity class: ZA1.
6. Lightweight and Hight-strength
Specific gravity between 1.75g/cm³and 1.95g/m³, high intension and modulus.
