Wood Pallet Pipe Shredding Unit

Get your Wood Pallet Pipe Shredding Unit from our factory. We are the leading manufacturer of industrial shredding equipment. Contact us today!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Product Details
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
HS series
Raw Material
Post-Consumer/Post Industry/in-House Plastic Waste
Structure
Top Feed
Knife Classification
DC53
Knife Roll
Solid Knife Roller
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Voltage
380V 50Hz or Customized
Electric Components
ABB, Ls, Omron, or Customized
Capacity Range
200-6000kg/H
After-Sale Service
Free Spare Parts
OEM
Available
MOQ
1PC
Supply Type
Customzied
Control
P.L.C Control
Advantage
Famous Brand Motor
Business Type
Manufacturer
Sample/Service Manual
Available
Factory Location
2 Hours Drive From Shanghai
Material
Iron
Transport Package
Wooden Pallet
Specification
Customzied
Trademark
ACERETECH
Origin
Zhangjiagang City, Jiangsu, China
HS Code
8477800000
Production Capacity
100

Packaging & Delivery

Package Size
500.00cm * 200.00cm * 200.00cm
Package Gross Weight
2700.000kg

Product Description

Wood Pallet Pipe Shredding Unit
Product Description

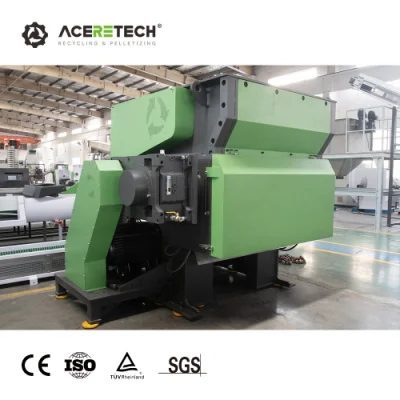

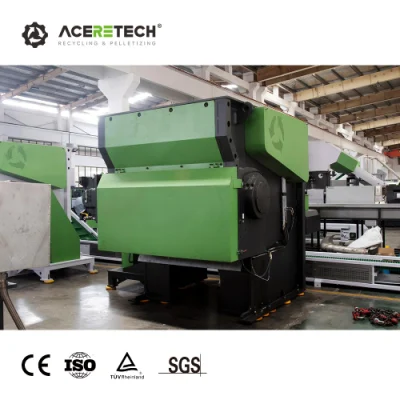

HS series is big sized single shaft shredder with large internal volume. The redesigned hydraulic pusher not only improves the power transmission and pushing speed, but also effectively avoids the occurrence of material blocking and the wear of the internal guide rails. This specially designed device creates about 35% more space in the cutting chamber. This series shredder adopts high-efficiency V type rotor design. The minimum width of the rotor is 1200mm, the maximum width is 2000mm, and the rotation diameter is 560mm. The rotor is driven by an oversized gearbox. The low speed of 85rpm ensures smooth running with high torque.
The hydraulic station is tightly integrated with the shredder chamber, which saves space and protects the hydraulic station. It is also easy to replace and maintain. The whole machine is welded by a special welding process, which can greatly improve the stability of the whole machine and can effectively prevent splashing. At the same time, the HS series has all the advantages of other shredders, including the special design of rotor knives and knife holders, external bearings, and convenient and advanced intelligent control systems.
HS series shredder is designed to meet the requirement of waste recycling in various industries,including bulk materials, pipes,films,woven bags, and all kinds of electronic cable scrap,ICB buckets,waste paper,used wood and various organic materials

Product Parameters
HS series
Item
unit
HS1200
HS1600
HS2000
Rotor diameter
mm
560
560
560
Number of rotor knives
pcs
105/112+29
136/148+38
180/192+49
Number of stator knives
pcs
2*3
2*4/2*3
2*5
Hydraulic feeding ram
kw
5.5
5.5
7.5
Feed opening
mm
1200*1850
1570*2025
1960*1570
Standard screen
mm
40-100
40-100
40-100
Chamber size
mm
800*1000
800*1290
800*1860
Motor
Kw
90
110
75*2
Machine weight
kg
9000
11000
13000
Machine Size
mm
2245*2570*2390
2245*2960*2390
2245*3300*2390
Product Details

Wood Pallet Pipe Shredding Unit

Wood Pallet Pipe Shredding Unit
Belt Conveyor

* The plastic waste is conveyed into the shredder through the belt feeding device;
* The device adopts ABB frequency converter for frequency control.
* The conveying speed of the belt feeding device is linked with the fullness of the shredder, and the speed of the conveyor belt is automatically adjusted according to the current of the shredder.
Wood Pallet Pipe Shredding Unit
Metal Detector

Optional Ferrous Metal Permanent Magnetic Belt or metal detector can prevent metal specials from entering the shredder and effectively protect the blades of the shredder.
Wood Pallet Pipe Shredding Unit
Hopper

Special designed hopper to avoid material flying out. The machine is fitted with a large filling hopper and can be loaded by conveyor belt, fork lift, crane or wheel-loader. This funnel can be adapted to suit individual requirements and guarantees a continuous and economical supply of material.
Wood Pallet Pipe Shredding Unit
Hydraulic Ram

The hydraulically operated pusher feeds the material towards the cutter automatically by load-related controls. The hydraulic system is equipped with overflow valves and volumetric flow controls, which can be both set according to the demands of the input materials.
Wood Pallet Pipe Shredding Unit

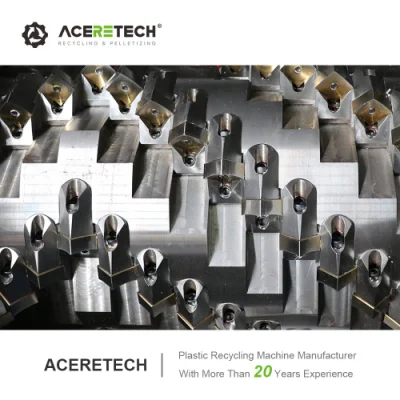

Rotor

The rotor is made of seamless steel pips with the diameter of 560mm and operates at a speed of 72 rpm. The concave ground, aggressive and 4-way rotating knives are mounted in the grooves of the rotor. This enables a reduction of the cutting gap between the counter knives and the rotor and guarantees a high flow rate, low power consumption and maximum output of ground material.
Wood Pallet Pipe Shredding Unit
Knife Blades

Knife Blades Material: DC53
Higher hardness (62-64 HRc) than D2/SKD11 after heat treatment
Twice the toughness of D2/SKD11 with superior wear resistance
Substantially higher fatigue strength compared to D2/SKD11
Wood Pallet Pipe Shredding Unit
Screen

The screen mounted beneath the rotor determines the size of the required flakes. The screen is also easily accessible by a separate flap and can be changed easily. The screen can be opened or closed hydraulically.
Wood Pallet Pipe Shredding Unit
Shredder Chamber

The shredder chamber is welded with 30mm ultra-high hardness steel plate, which is wear-resistant, corrosion-resistant, low-noise, and has a longer service life.


Wood Pallet Pipe Shredding Unit
Motor

Adopt imported brand motor WEG, low energy consumption, low noise, long service life
Power is transmitted from the electromotors by a belt drive via an oversized gearbox which is located on the shaft end on one side of the rotor.
Wood Pallet Pipe Shredding Unit
Electronic Control

The whole model adopts frequency conversion control and conforms to international standards such as CE.


Wood Pallet Pipe Shredding Unit

Wood Pallet Pipe Shredding Unit
Wood Pallet Pipe Shredding Unit
Wood Pallet Pipe Shredding Unit

Company Profile



Wood Pallet Pipe Shredding Unit Wood Pallet Pipe Shredding Unit Wood Pallet Pipe Shredding Unit Wood Pallet Pipe Shredding Unit Wood Pallet Pipe Shredding Unit
FAQ

YOU ARE WELCOME TO OUR FACTORY AT ANY TIME
* ACERETECH is original manufacturer.
* If you interested in our products and we can fulfill your request , you may pay a visit to ACERETECH Factory.
* The meaning of visiting supplier, since seeing is believing, ACERETECH Machinery with own manufacture and developed& research team, we can send you engineers and make sure the high efficiency after-sales service.

SEE ACERETECH MACHINE HOW TO ENSURE THE QUALITY
* In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
* Each component before assembly needs strict control by inspecting personnel.
* Each assembly is in charge by a master who has working experience for more than 15 years
* After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory

THE AFTER-SALE SERVICE OF ACERETECH MACHINERY

* After finishing the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools.
* After the commissioning, we will package the equipment by the standard export package for shipment.
* According to the customer's request, we can arrange our engineers to customers' factories to do the installation and training.
* Engineers, sales managers, and after-sales service managers will form an after-sales team, online and offline, to follow the customers' project.
