Basic Info.
Product Description

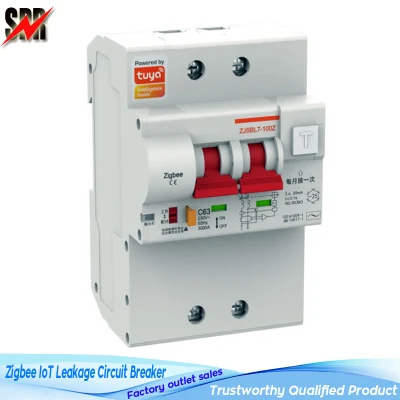

Zigbee/Tuya App Remote Control Wifi MCB circuit breaker for Amanzon Alexa and Google home
with overload short circuit protection
Applications:
The ZJSBL7-100Z WiFi/Zigbee intelligent recloser circuit breaker can be widely used in household, factories, sduent dormitroy,
farmland, muicipal works and can intelliently remote control water pump, water heater, underfloor heating equiement, etc.
Features:
*Remote control at anytime from anywhere
*voice control with Amazon Alexa and Google home
*overload and short circuit protection
*over volatage and under voltage protection
*timely switch on/off
*time delay switch on/off
*cycle switch on/off
Functions:
The ZJSB-80Z reclosing circuit breaker are suitable for 50Hz/60Hz, 230/400V 0~125A circuit which have the function
such as overload protection, short-circuit protection and isolating protection.
Meanwhile, this intelligent resclosing circuit breaker have the function as switched oof/on globally remote control by
smart cell phone.
Specifications:
| Standards | GB/T 10963.1 NB/T42149. IED60898-1 |
| Rated voltage | AC230V(1P. 2P)/AC 400V(3P.4P) |
| Rated frequency | 50/60Hz |
| Protection | 2P, 4P |
| Operating temperature | -25°C to 65°C |
| Frame Current | 100A |
| Rate current | 10A 16A 20A 25A 32A 40A 50A 63A 80A 100A |
| Breaking capacity | 3KA 6KA |
| Mechanical life | ≥10,000 times |
| Electrical life | ≥6,000 times |
| Power consumption | ≤2W |
| Precision | Level 1 |
| Voltage | 0.1V |
| Current | 0.001A |
| Unit Price(Ex Works) | 2P 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A $58.85/PC 2P 80A $61.85/PC 2P 100A $63.85/PC 4P 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A $66.85/PC 4P 80A $69.85/PC 4P 100A $70.85/PC |
