- Product Description
Basic Info.
Model NO.
HJ-65
Internal Dimensions
50 X 400 X 30(Customizable)
External Dimensions
145X180X145(Customizable)
Weight (Approximately)
700kg
Heating Time (Heat Storage Area)
Rt~200 Celsius About 35min
Cooling Time (Cold Storage Area)
Rt~-70 Celsius About 85min
Transport Package
Fumigation-Free Standard Export Wooden Box
Trademark
Hongjin
Origin
China
Production Capacity
1000 Sets/ Month
Packaging & Delivery
Package Size
145.00cm * 180.00cm * 145.00cm
Package Gross Weight
700.000kg
Lead Time
7 days (1 - 1 Pieces)
To be negotiated ( > 1 Pieces)
To be negotiated ( > 1 Pieces)
Product Description
Scope of application
Cold and heat impact test box, divided into three boxes of cold and heat impact test box, two boxes of cold and heat impact test box, it is mainly used in metal, plastic, electronic batteries, headphones, mobile phones, rubber, LED, home appliances, scientific research, universities and other material industry test equipment.

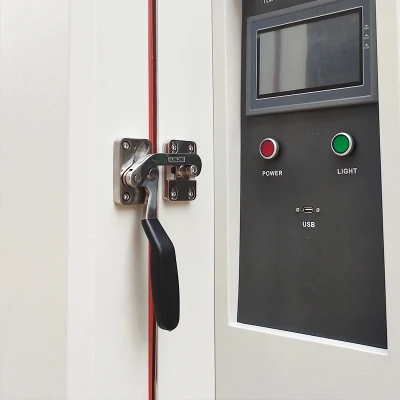

1, using color Chinese and English 10 inch LCD touch type picture control interface, easy to operate.

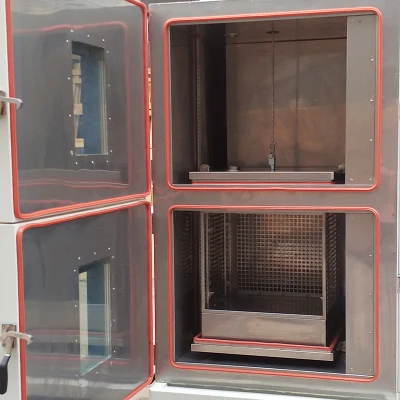

2. The equipment is divided into three parts: high temperature zone, low temperature zone and test zone. The box of each zone adopts unique heat breaking structure.
3. Impact mode The temperature is imported into the test area by air channel switching for cold and hot impact test.
4. high temperature impact or low temperature impact, the large time can reach 9999 minutes, the large cycle can reach 9999 times. The system can make automatic circulation impact or manual selective impact and can set two or three zone impact and cold impact hot impact start.
5, cooling to the binary freezing system, cooling effect is fast, cooling method for air cooling or water cooling two kinds.
Product parameters
| Model number | TS-60(A-C) | TS-80(A-C) | TS-150(A-C) | TS-252(A-C) | TS-450(A-C) |
| Internal Size WxHxD (cm) | 50*40*30 | 50*40*40 | 60*50*50 | 70*60*60 | 80*75*75 |
| External Size WxHxD (cm) | 145*180*145 | 148*190*155 | 160*200*175 | 175*210*187 | 190*220*200 |
| Temperature range (test area) | "150ºC A: -45° C; B:- 55°ºC; C: -65ºC; High temperature: + 60 ºC "+ 150 ºC; Low temperature zone - 10 ºC - 65 ºC" | ||||
| Heating time (heat storage area) | It takes about 35min at RT200ºC | ||||
| Cooling time (storage area) | It takes about 85min at RT-70ºC | ||||
| Temperature recovery time/conversion time | ≤ within 5 min / ≤ within 10 seconds | ||||
| Temperature control accuracy/distribution accuracy | ±0.5ºC/±2.0ºC | ||||
| Insulation material | High temperature high density chlorine formic acid b vinegar foam insulation material | ||||
| system | P. I.D + s. s. R + balance of microcomputer temperature control system | ||||
| Cooling system | Half closed double period of compressor (water-cooled)/full closed double period of compressor (air-cooled) | ||||
| Safety protection device | No fuse switch, compressor high and low voltage protection switch, refrigerant high-pressure protection switch, failure warning system, electronic alarms | ||||
| accessories | View window (special) of choose and buy, adjustable up and down layer of two pieces of insulation, electricity test hole, castor, horizontal support | ||||
| Power supply | AC380V 50 hz / 60 hz3 ∮ | ||||
| Weight (approximate) | 700KG | 900KG | 1200KG | 1400KG | 1900KG |
